F6W0 Series

Manufacturer: Techflex

Catalog

SELF WRAP 0.312" X 650' BLACK

Part	Wall Thickness	Wall Thickness	Material	Material Flammability Rating	Length	Length	Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Abrasion Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Length [x]	Length [x]

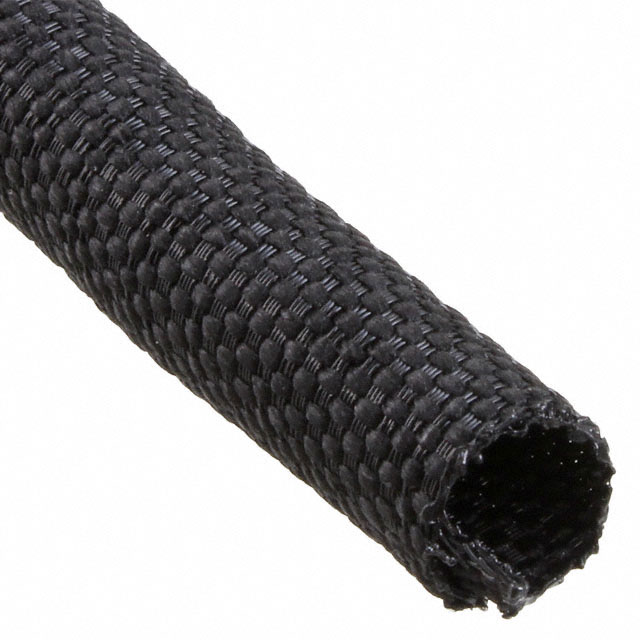

Techflex F6W0.31BK650	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	198.12 m	650 ft	Self Wrap	-70 °C	125 °C	Clean Cut	Black	Abrasion Resistant	0.313 in	7.95 mm	Split Flexible Tube

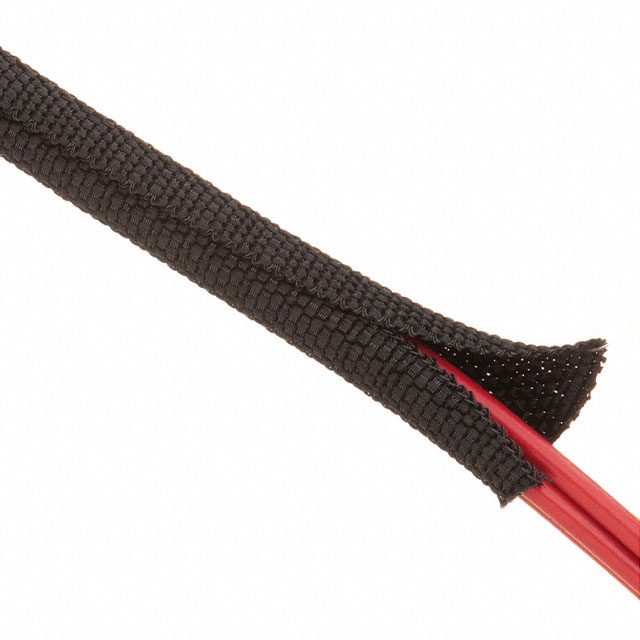

Techflex F6W0.19BK600	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	182.88 m	600 ft	Self Wrap	-70 °C	125 °C	Clean Cut	Black	Abrasion Resistant	0.188 in	4.78 mm	Split Flexible Tube

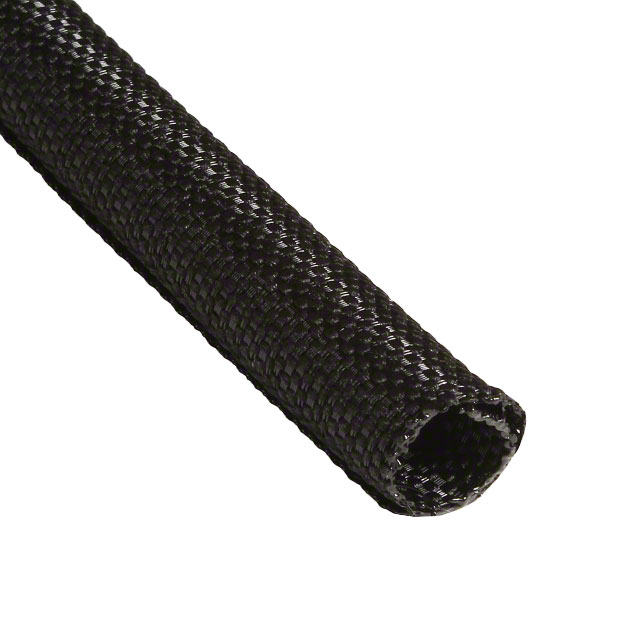

Techflex F6W0.50BK150	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	45.72 m	150 '	Self Wrap	-70 °C	125 °C	Clean Cut	Black	Abrasion Resistant	0.5 in	12.7 mm	Split Flexible Tube

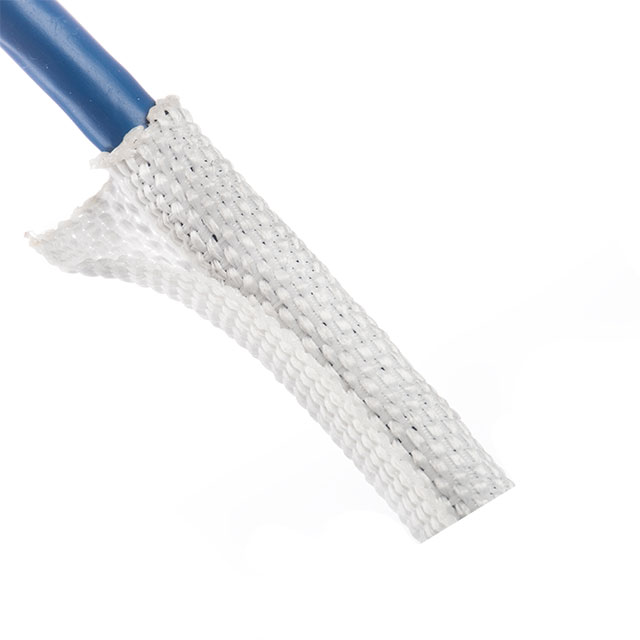

Techflex F6W0.19WH200	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	60.96 m	200 ft	Self Wrap	-70 °C	125 °C	Clean Cut	White	Abrasion Resistant	0.188 in	4.78 mm	Split Flexible Tube

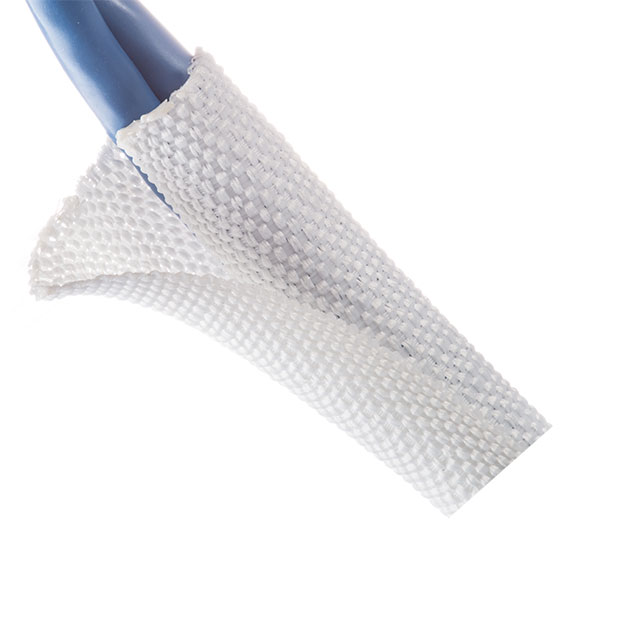

Techflex F6W0.63WH75	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0			Self Wrap	-70 °C	125 °C	Clean Cut	White	Abrasion Resistant	0.625 "	15.88 mm	Split Flexible Tube	22860 mm	75 ft

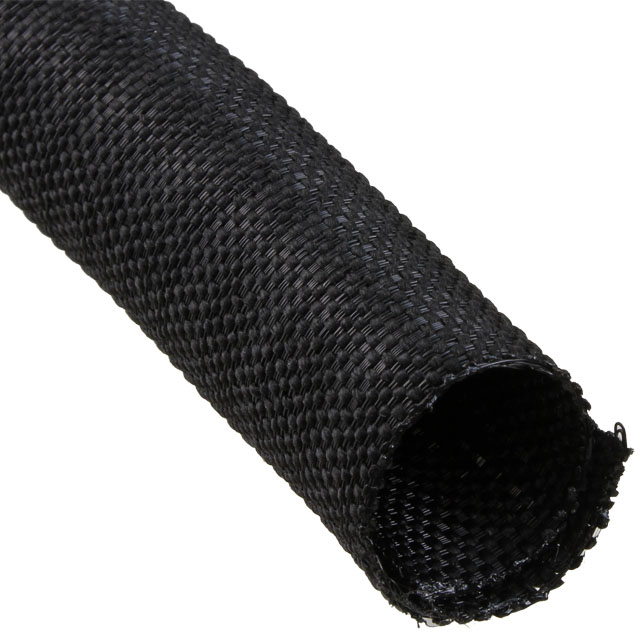

Techflex F6W0.75BK100	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	30.48 m	100 '	Self Wrap	-70 °C	125 °C	Clean Cut	Black	Abrasion Resistant	0.75 in	19.05 mm	Split Flexible Tube
Techflex F6W0.19CB1200	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	365.76 m	1200 ft	Self Wrap	-70 °C	125 °C	Clean Cut	Gray	Abrasion Resistant	0.188 in	4.78 mm	Split Flexible Tube
Techflex F6W0.75BK150	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	45.72 m	150 '	Self Wrap	-70 °C	125 °C	Clean Cut	Black	Abrasion Resistant	0.75 in	19.05 mm	Split Flexible Tube
Techflex F6W0.19WH1200	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	365.76 m	1200 ft	Self Wrap	-70 °C	125 °C	Clean Cut	White	Abrasion Resistant	0.188 in	4.78 mm	Split Flexible Tube

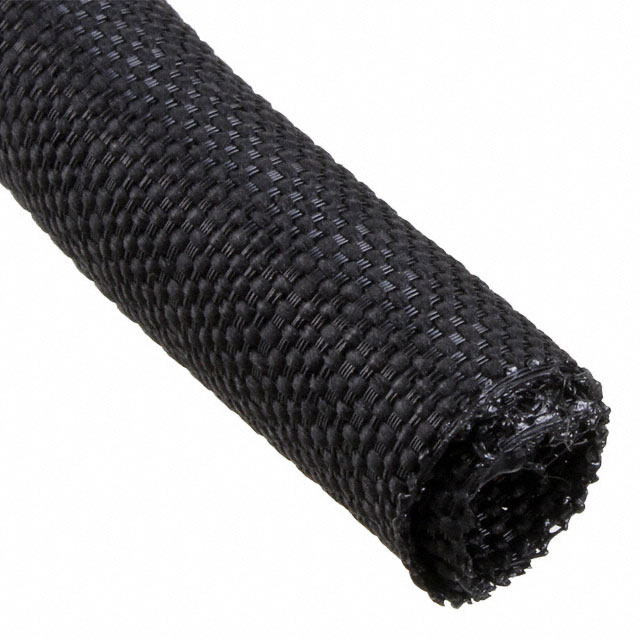

Techflex F6W0.63BK250	0.027 in	0.69 mm	Polyethylene Terephthalate (PET) Halogen Free	UL94 V-0	76.2 m	250 ft	Self Wrap	-70 °C	125 °C	Clean Cut	Black	Abrasion Resistant	0.625 "	15.88 mm	Split Flexible Tube
