DEO09 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

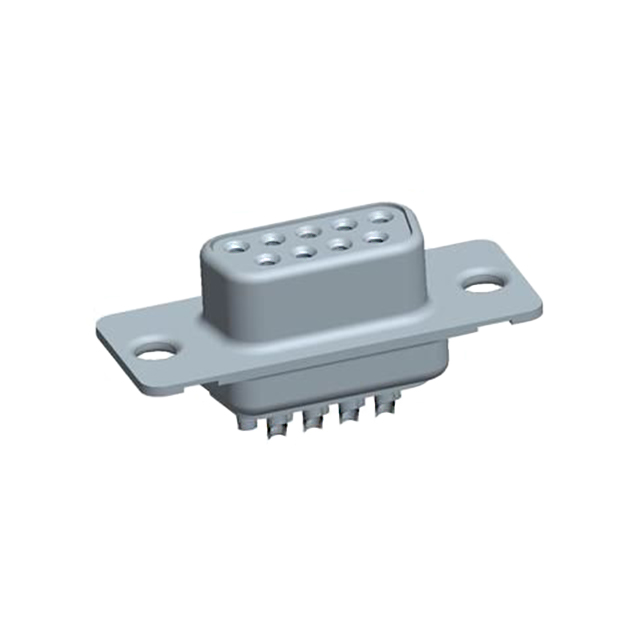

CONN D-SUB RCPT 9POS SLDR CUP
| Part | Current Rating (Amps) | Wire Gauge | Contact Material | Contact Type | Number of Positions | Contact Finish | Mounting Type | Contact Finish Thickness | Color | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Voltage Rating | Connector Type | Connector Style | Number of Rows | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 5 A | 20 AWG | Copper Alloy | Signal | 9 | Gold GXT™ | Free Hanging (In-Line) | Flash | Natural | Thermoplastic | DE E | 1 | -55 °C | 125 °C | Cable Side | 300 VDC | Receptacle Female Sockets | D-Sub | 2 | UL94 V-0 |
