710W-00 Series
Manufacturer: Qualtek
Beta
⌘K

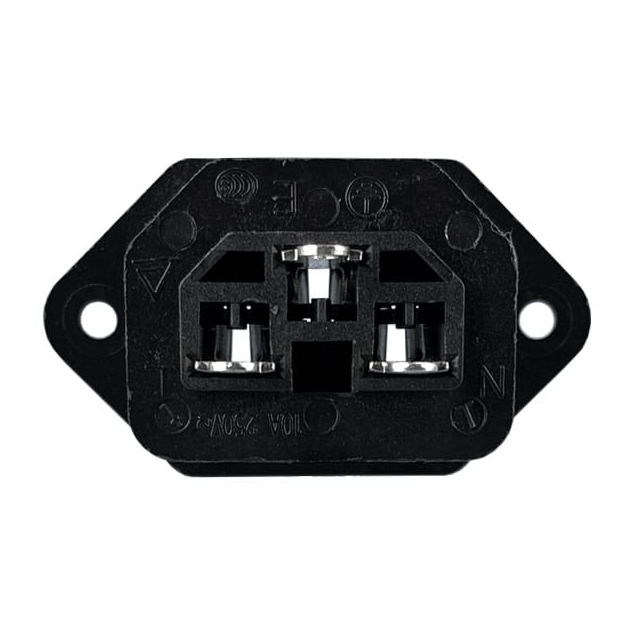

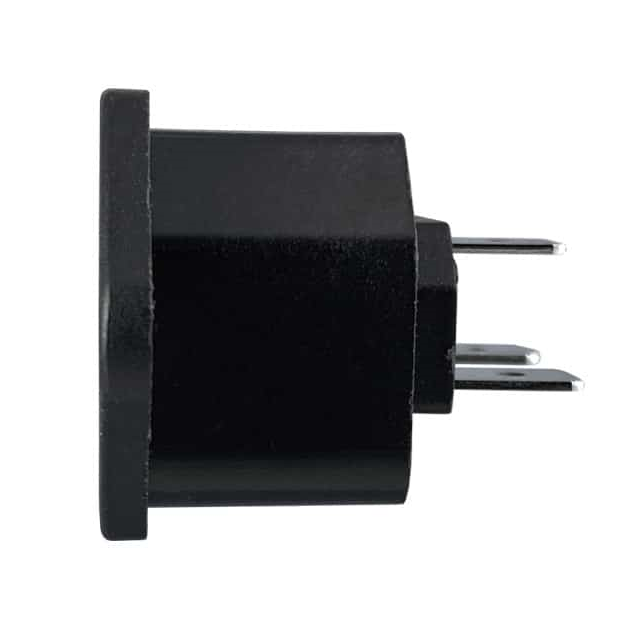

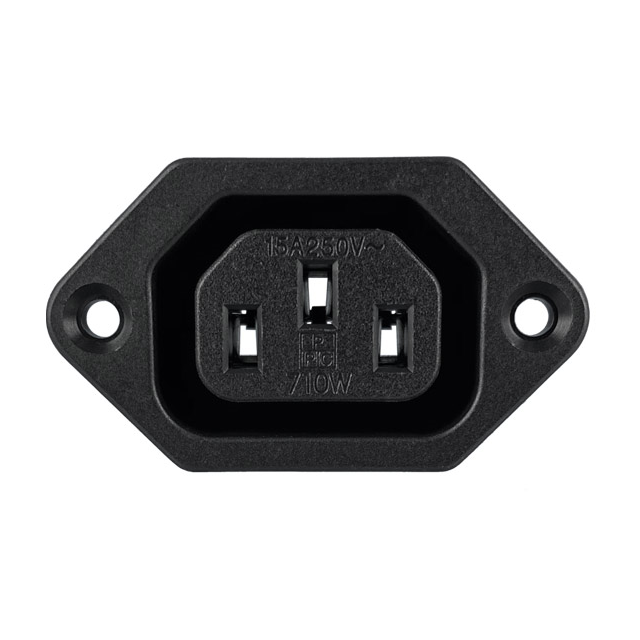

PWR ENT RCPT IEC320-2-2F PNL QC
| Part | Termination | Termination | Termination | Approval Agency | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Connector Type | Filter Type | Connector Style | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 6.3 mm | Quick Connect | 0.25 " | CSA TUV UL | 25 mm | 32.5 mm | Flange Panel Mount | Receptacle Female Sockets | Unfiltered - Commercial | IEC 320-2-2/F | 250 VAC | 10 A | |
 Qualtek | Solder Eyelet | CCC CSA TUV UL | 25 mm | 32.5 mm | Flange Panel Mount | Receptacle Female Sockets | Unfiltered - Commercial | IEC 320-2-2/F | 250 VAC | 10 A | |||
 Qualtek | 4.8 mm | Quick Connect | 0.189 " | CSA TUV UL | 25 mm | 32.5 mm | Flange Panel Mount | Receptacle Female Sockets | Unfiltered - Commercial | IEC 320-2-2/F | 250 VAC | 10 A | |
 Qualtek | 6.3 mm | Quick Connect | 0.25 " | CCC CSA TUV UL | 25 mm | 32.5 mm | Flange Panel Mount | Receptacle Female Sockets | Unfiltered - Commercial | IEC 320-2-2/F | 250 VAC | 10 A |
