MEAS FS20 Series

Catalog

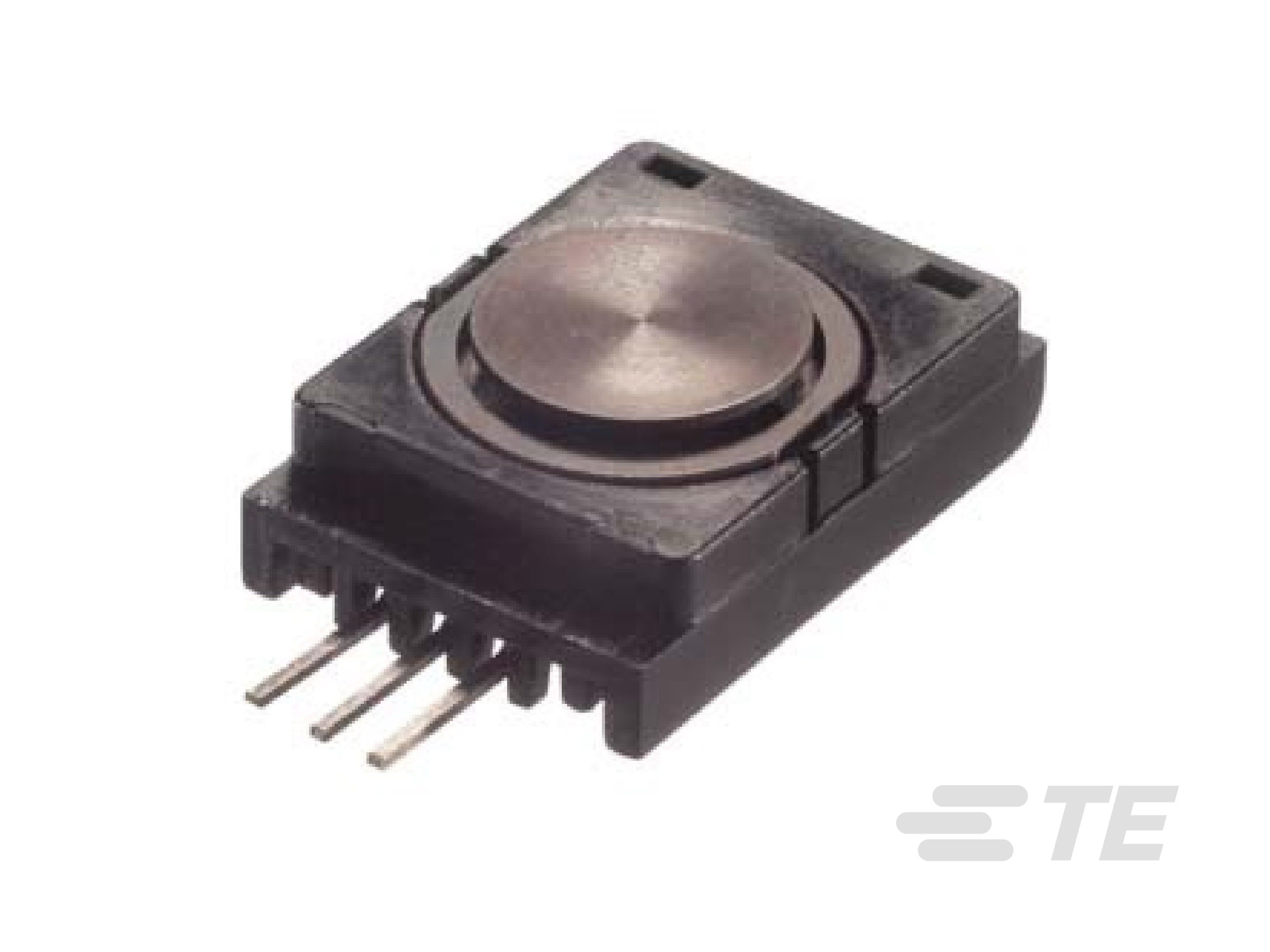

FORCE SENSORS & LOAD CELLS FS2050 3000G FORCE SENSOR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Style/Size	Actuator Style/Size	Accuracy	Operating Force	Operating Force	Includes	Output [Max]	Output [Min]	Sensor Type	Actuator Type	Compensated Temperature [Max]	Compensated Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output
TE Connectivity AMP Connectors FS2050-0000-3000-G
TE Connectivity AMP Connectors FS2030-0000-5000-G
TE Connectivity AMP Connectors FS2030-0000-3000-G
TE Connectivity AMP Connectors FS2030-0000-0500-G
TE Connectivity AMP Connectors FS2030-000X-3000-G
TE Connectivity AMP Connectors FS2050-000X-5000-G
TE Connectivity AMP Connectors FS2030-0000-0750-G
TE Connectivity AMP Connectors FS2050-000X-1500-G	70 °C	0 °C	Round	12.2 mm	1 %	3.3 lbs	1500 gf	Sensor	4 V	1 V	Load Cell	Plunger	50 °C	0 °C	12 V	3.3 V
TE Connectivity AMP Connectors FS1901-0000-0500-G	40 °C	0 °C	Round	2.7 mm	1 %		0.5 kgf				Load Cell	Button			10 V	2 V	Analog Ratiometric
TE Connectivity AMP Connectors FS2030-000X-1000-G
