53025 Series

Manufacturer: CNC Tech

Catalog

WIRE-TO BOARD WAFER, 2.5MM, 10 C

Part	Shrouding	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Material	Fastening Type	Material Flammability Rating	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Termination	Insulation Color	Mounting Type	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Style	Contact Length - Post [x]	Contact Length - Post	Connector Type	Number of Rows [custom]	Voltage Rating	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Note	Row Spacing	Row Spacing	Pitch	Pitch	Contact Termination	Color	Contact Length - Post

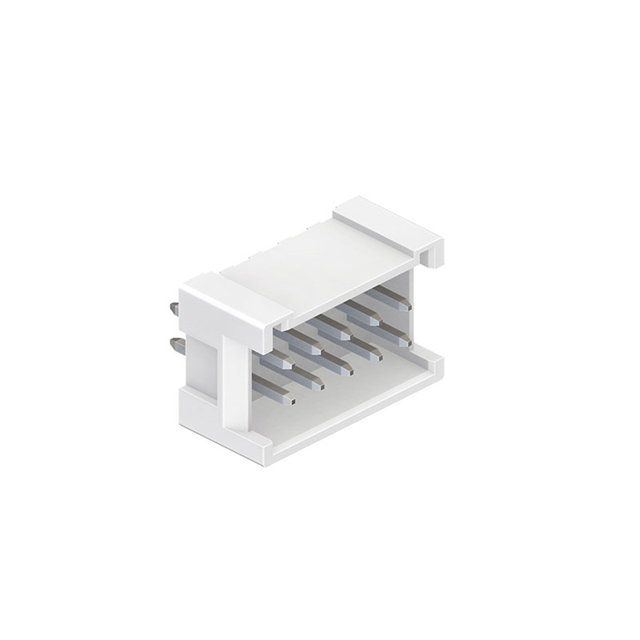

CNC Tech 53025-10-0100-01	Shrouded - 4 Wall	3 A	7.3 mm	0.287 in	Brass	Locking Ramp	UL94 V-0	Tin	10	All	Solder	White	Through Hole	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	0.134 "	3.4 mm	Header	2	250 VAC	Male Pin	2.5 mm	0.098 in	85 °C	-25 °C

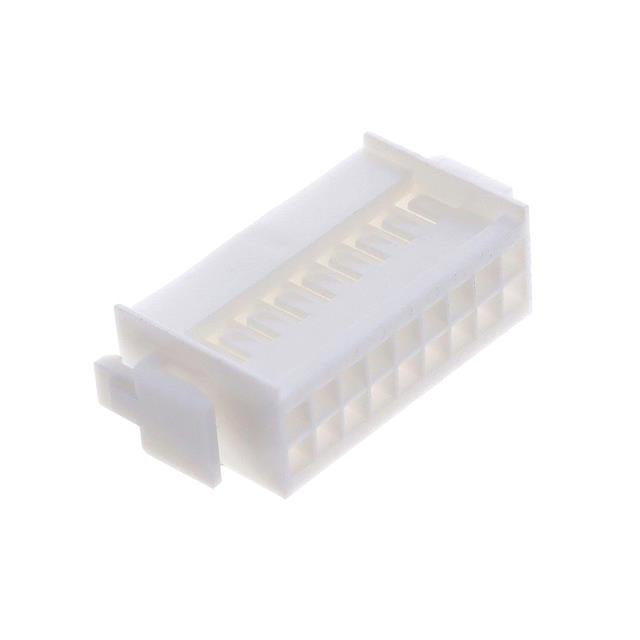

CNC Tech 53025-18						Latch Lock			18				Free Hanging (In-Line)				Nylon 6/6 Polyamide (PA66)				Receptacle	2		Female Socket			85 °C	-25 °C	Contacts Not Included	0.098 "	2.5 mm	2.5 mm	0.098 in	Crimp	White

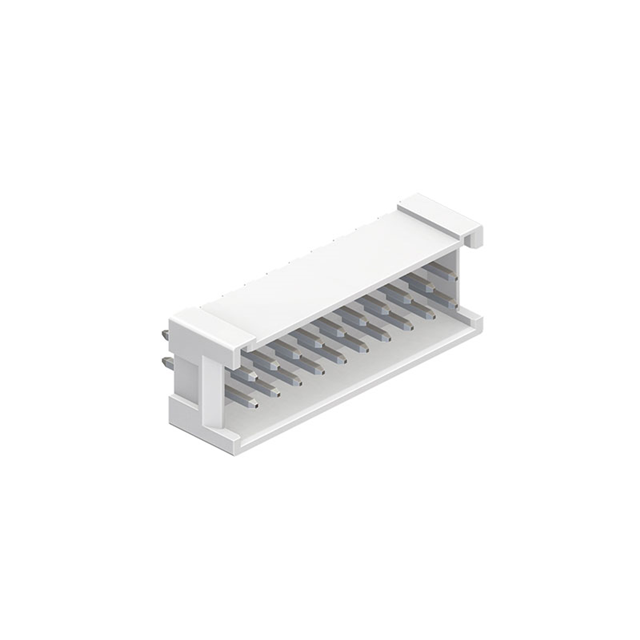

CNC Tech 53025-20-0100-01	Shrouded - 4 Wall	3 A	7.3 mm	0.287 in	Brass	Locking Ramp	UL94 V-0	Tin	20	All	Solder	White	Through Hole	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	0.134 "	3.4 mm	Header	2	250 VAC	Male Pin	2.5 mm	0.098 in	85 °C	-25 °C

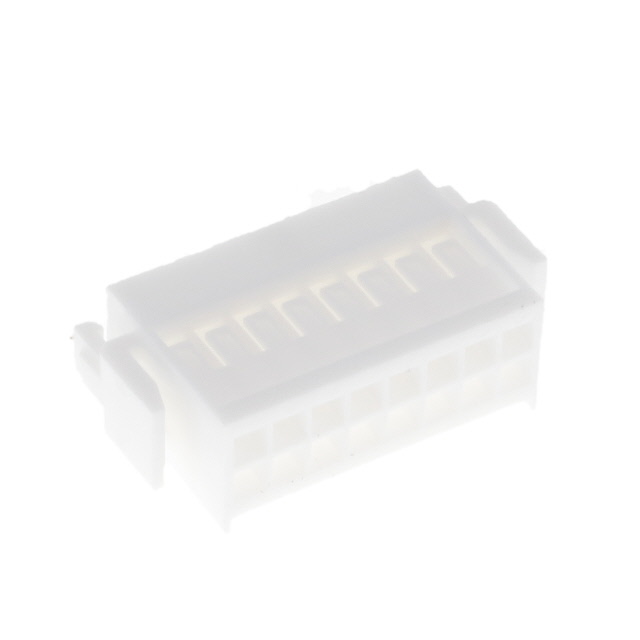

CNC Tech 53025-16						Latch Lock			16				Free Hanging (In-Line)				Nylon 6/6 Polyamide (PA66)				Receptacle	2		Female Socket			85 °C	-25 °C	Contacts Not Included	0.098 "	2.5 mm	2.5 mm	0.098 in	Crimp	White

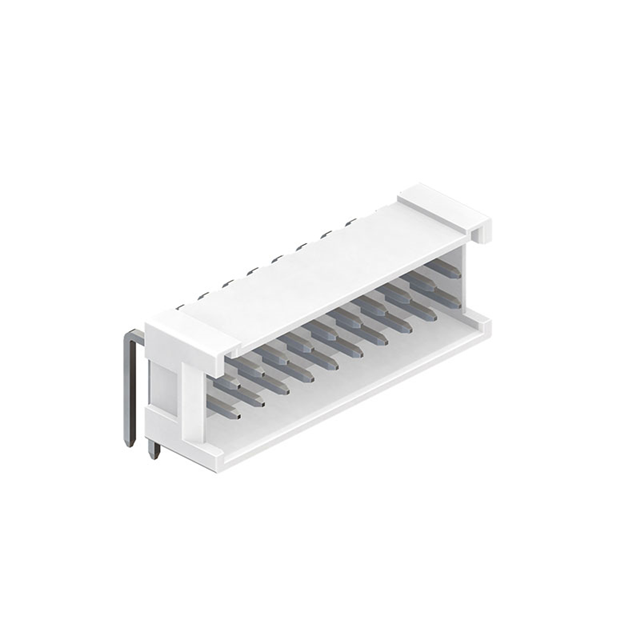

CNC Tech 53025-20-0200-01	Shrouded - 4 Wall	3 A	10 mm	0.394 "	Brass	Locking Ramp	UL94 V-0	Tin	20	All	Solder	White	Right Angle Through Hole	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire		3.5 mm	Header	2	250 VAC	Male Pin	2.5 mm	0.098 in	85 °C	-25 °C								0.138 in

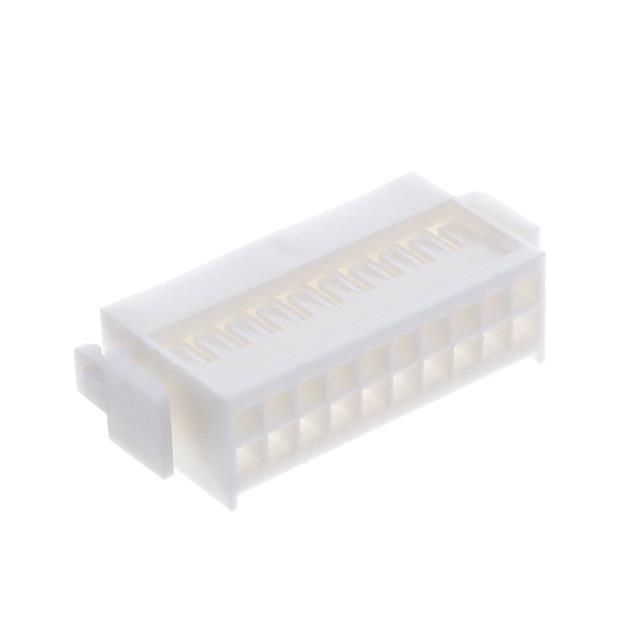

CNC Tech 53025-20						Latch Lock			20				Free Hanging (In-Line)				Nylon 6/6 Polyamide (PA66)				Receptacle	2		Female Socket			85 °C	-25 °C	Contacts Not Included	0.098 "	2.5 mm	2.5 mm	0.098 in	Crimp	White

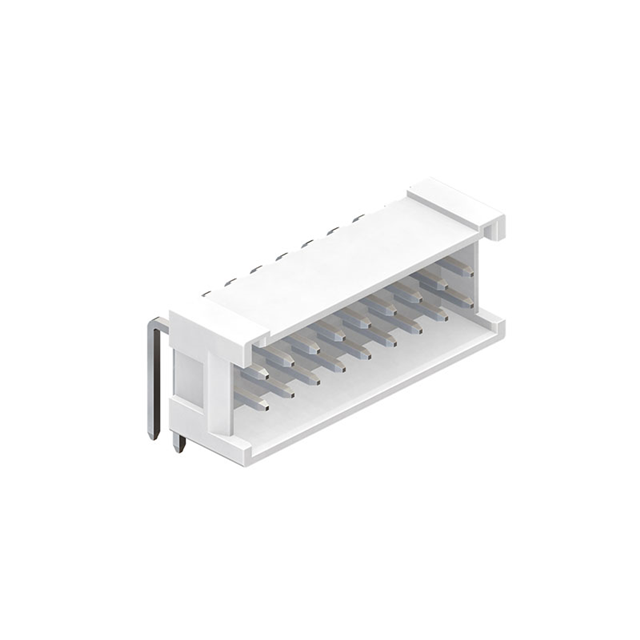

CNC Tech 53025-18-0200-01	Shrouded - 4 Wall	3 A	10 mm	0.394 "	Brass	Locking Ramp	UL94 V-0	Tin	18	All	Solder	White	Right Angle Through Hole	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire		3.5 mm	Header	2	250 VAC	Male Pin	2.5 mm	0.098 in	85 °C	-25 °C								0.138 in

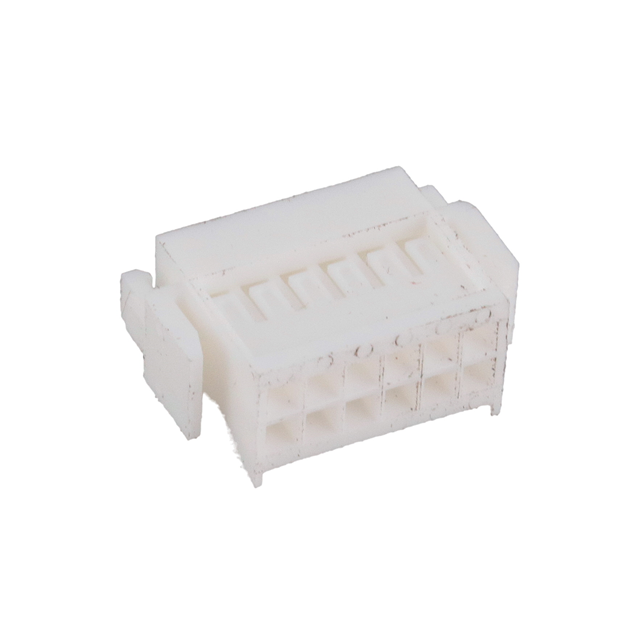

CNC Tech 53025-12						Latch Lock			12				Free Hanging (In-Line)				Nylon 6/6 Polyamide (PA66)				Receptacle	2		Female Socket			85 °C	-25 °C	Contacts Not Included	0.098 "	2.5 mm	2.5 mm	0.098 in	Crimp	White
CNC Tech 53025-12-0100-01	Shrouded - 4 Wall	3 A	7.3 mm	0.287 in	Brass	Locking Ramp	UL94 V-0	Tin	12	All	Solder	White	Through Hole	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	0.134 "	3.4 mm	Header	2	250 VAC	Male Pin	2.5 mm	0.098 in	85 °C	-25 °C
CNC Tech 53025-16-0200-01	Shrouded - 4 Wall	3 A	10 mm	0.394 "	Brass	Locking Ramp	UL94 V-0	Tin	16	All	Solder	White	Right Angle Through Hole	Square	2.5 mm	0.098 in	Glass Filled Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire		3.5 mm	Header	2	250 VAC	Male Pin	2.5 mm	0.098 in	85 °C	-25 °C								0.138 in
