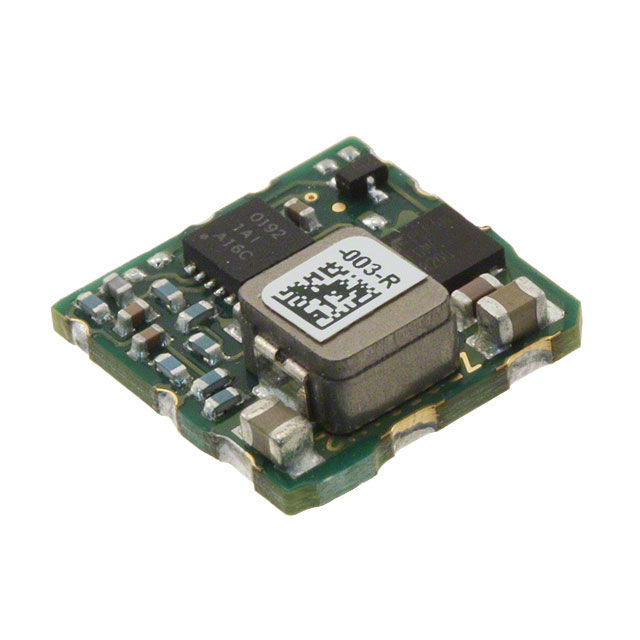

iCF Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 16.5 W, 600 MV, 3.63 V, 3 A

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Supplier Device Package	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Package / Case	Features	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Type	Current - Output (Max)
TDK Corporation ICF05003A006V-006-R	12.2 mm	0.14 in	12.2 mm	0.48 in	0.48 in	3.7 mm	2.4 V	1	ITE (Commercial)	10-SMD Module	0.6 V	3.63 V	92 %	115 °C	-40 C	3 A	10-SMD Module	OTP SCP	11 W	5.5 V	Surface Mount	Non-Isolated PoL Module
TDK Corporation ICF12005A007V-006-R	12.2 mm	0.18 in	12.2 mm	0.48 in	0.48 in	4.5 mm	4.5 V	1	ITE (Commercial)	10-SMD Module	0.7 V	5.5 V	93.5 %	115 °C	-40 C		10-SMD Module	OTP SCP	25 W	14 V	Surface Mount	Non-Isolated PoL Module	5 A
