HEEE-020 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

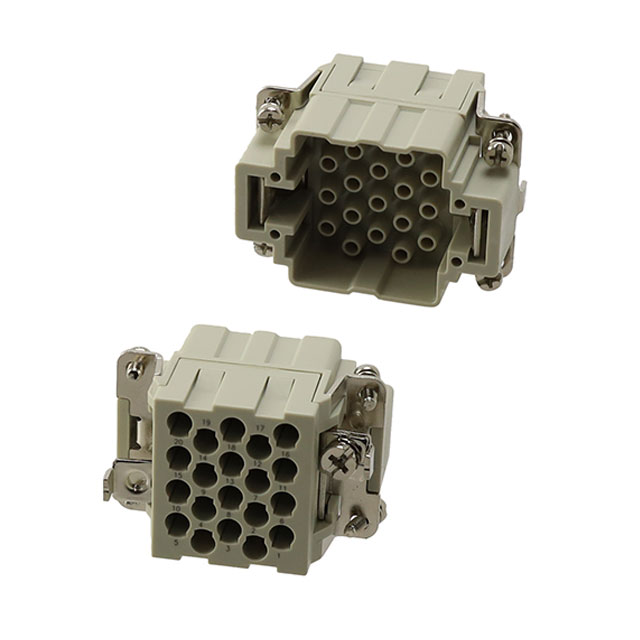

INSERT MALE 20P+1GND HEEE-020-M
| Part | Material Flammability Rating | Housing Material | Current Rating (Amps) | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination Style | Voltage Rating | Connector Type | Size | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | EN45545 | Polycarbonate (PC) | 16 A | Male | 125 °C | -40 C | 20+Ground | Crimp | 400 V | Insert without Contacts | H6B | CEM DEM |

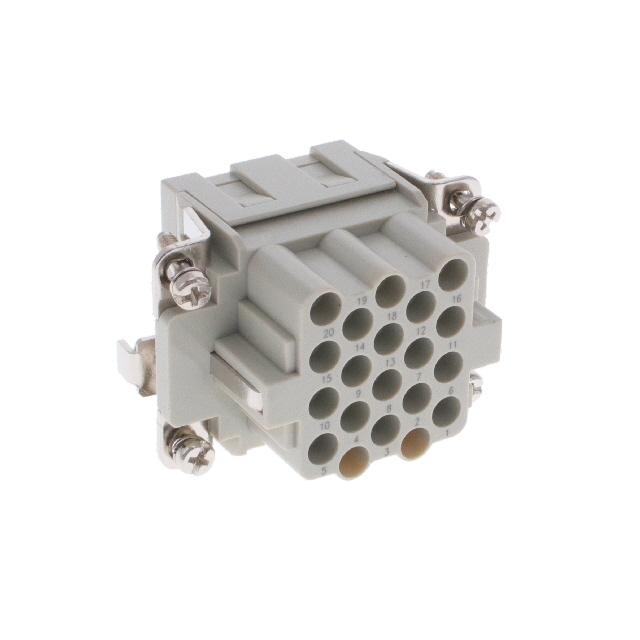

 TE Connectivity AMP Connectors | EN45545 | Polycarbonate (PC) | 16 A | Female | 125 °C | -40 C | 20+Ground | Crimp | 400 V | Insert without Contacts | H6B | CEF DEF |
