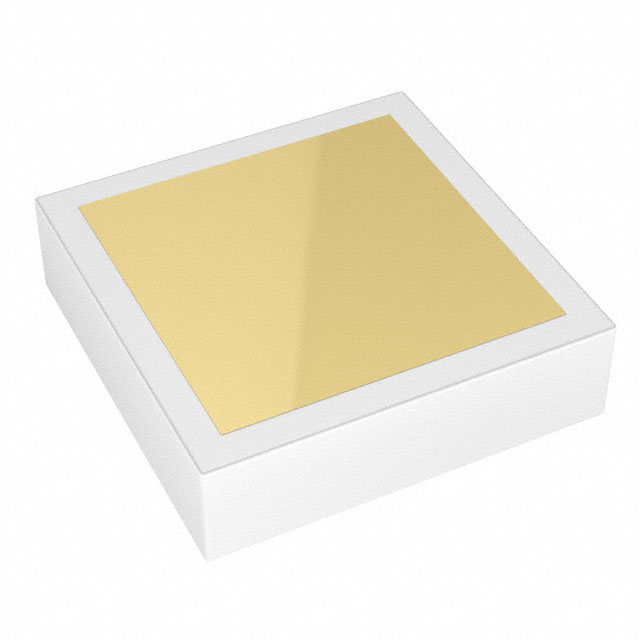

SC Series

Catalog

SILICON RF CAPACITORS / THIN FILM 2.6PF + / - 20% .009 PAD .012 CHIP

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Tolerance	Capacitance	Features	Voltage - Breakdown	Height [z]	Height [z]	Applications	Operating Temperature [Min]	Operating Temperature [Max]
Skyworks Solutions Inc. SC00260912	0.012 in	0.012 in	0.3 mm	0.3 mm	Nonstandard Chip	20 %	2.6 pF	High Reliability	100 V	0.15 mm	0.006 in	High Temperature	-65 ░C	200 °C
Skyworks Solutions Inc. SC02201518	0.018 in	0.018 in	0.46 mm	0.46 mm	Nonstandard Chip	20 %	22 pF	High Reliability	100 V	0.15 mm	0.006 in	High Temperature	-65 ░C	200 °C
