AR24-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

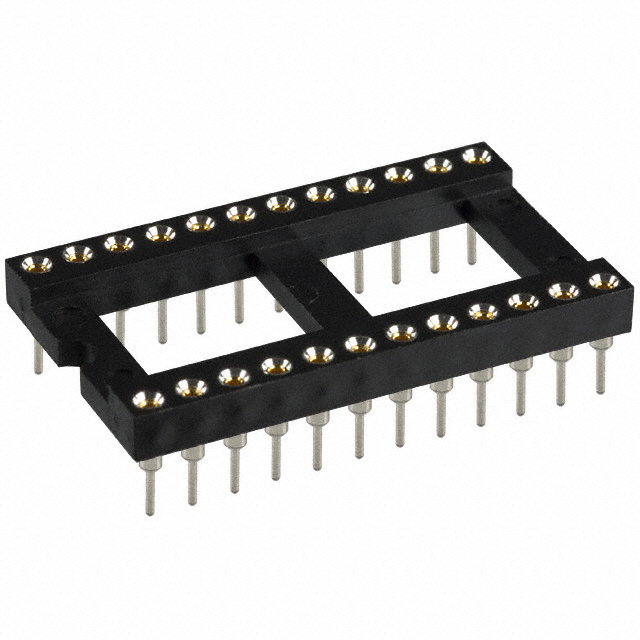

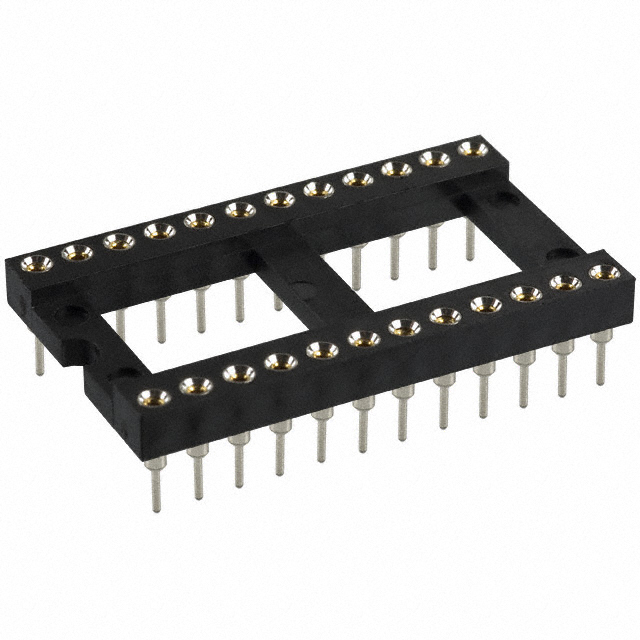

CONN IC DIP SOCKET 24POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Mounting Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material - Mating | Features | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Type [custom] | Type [custom] | Type | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 4 mOhm | UL94 V-0 | 3 A | 0.1 " | 2.54 mm | Tin | Through Hole | Gold | 200 µin | 5.08 µm | Beryllium Copper | Solder | 0.25 µm | 10 µin | Beryllium Copper | Open Frame | 0.1 in | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 15.24 mm | 0.6 in | DIP | 12 | 2 | 24 |
 Assmann WSW Components | 4 mOhm | UL94 V-0 | 3 A | 0.1 " | 2.54 mm | Tin | Through Hole | Gold | 200 µin | 5.08 µm | Beryllium Copper | Solder | 0.76 Ám | 30 Áin | Beryllium Copper | Open Frame | 0.1 in | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 15.24 mm | 0.6 in | DIP | 12 | 2 | 24 |
