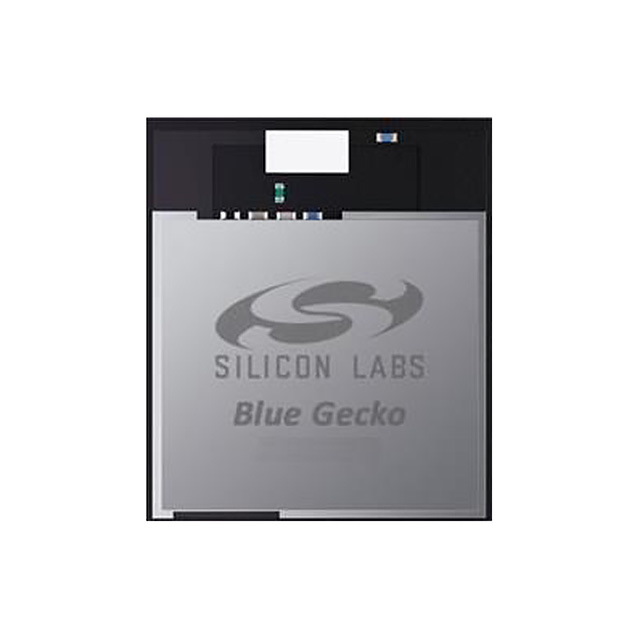

BGM13 Series

Catalog

RF TXRX MOD BLUETOOTHU.FL SMD

Part	Utilized IC / Part	Frequency	Serial Interfaces	Protocol	Antenna Type	Modulation	Power - Output	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Current - Receiving	Current - Transmitting	RF Family/Standard

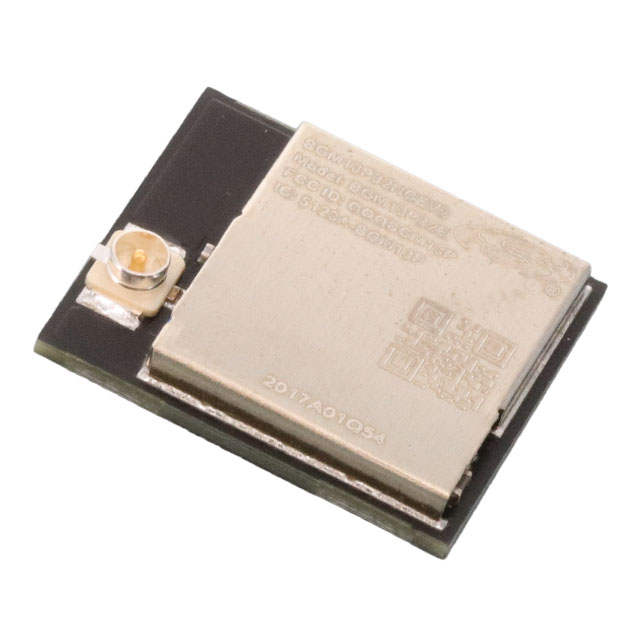

SILICON LABS BGM13P32F512GE-V2	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Antenna Not Included U.FL	GFSK	19 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth

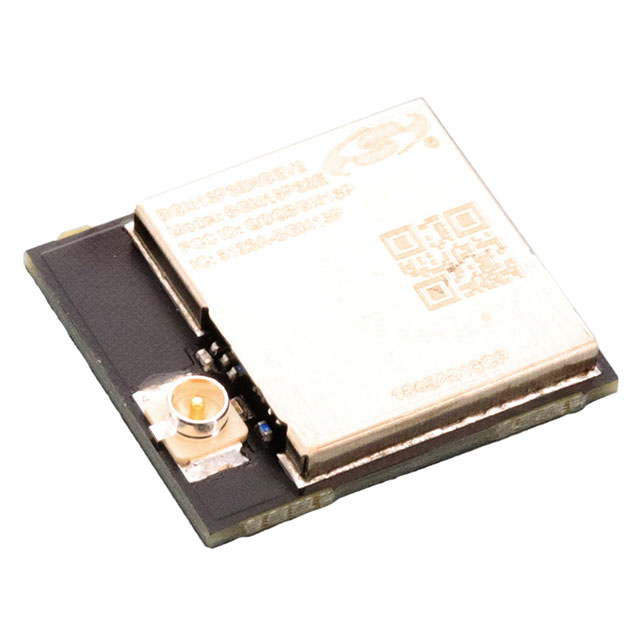

SILICON LABS BGM13P32F512GE-V2R	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Antenna Not Included U.FL	GFSK	19 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth
SILICON LABS BGM13P32F512GA-V2	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Chip Integrated	GFSK	19 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth
SILICON LABS BGM13P22F512GA-V2	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Chip Integrated	GFSK	8 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth
SILICON LABS BGM13P22F512GE-V2R	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Antenna Not Included U.FL	GFSK	8 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth
SILICON LABS BGM13P22F512GA-V2R	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Chip Integrated	GFSK	8 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth
SILICON LABS BGM13P22F512GE-V2	EFR32BG	2.4 GHz	GPIO I2C I2S SPI UART	Bluetooth v5.0	Antenna Not Included U.FL	GFSK	8 dBm	Module	Surface Mount	1.8 V	3.8 V	2 MBd	64 kB 512 kB	85 °C	-40 C	-94.8 dBm	9.9 mA	9.5 mA	Bluetooth
