RBM Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC MICRO 3KV UNREG 5VIN 5VOUT

Part	Applications	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Type	Efficiency	Features	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Recom Power RBM-0505S/P	ITE (Commercial) Medical	5.5 V	6-SIP Module 5 Leads	5 V	Isolated Module	78 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	4.5 V	200 mA	1	85 °C	-40 C
Recom Power RBM-1212D	ITE (Commercial) Medical	13.2 V	6-SIP Module 5 Leads	12 V	Isolated Module		SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	10.8 V	41 mA	2	85 °C	-40 C	-12 V
Recom Power RBM-0505D/P	ITE (Commercial) Medical	5.5 V	6-SIP Module 5 Leads	5 V	Isolated Module	78 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	4.5 V		2	85 °C	-40 C	-5 V	100 mA	100 mA

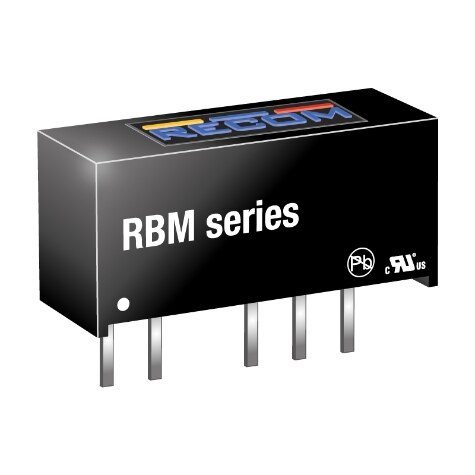

Recom Power RBM-1212S	ITE (Commercial) Medical	13.2 V	6-SIP Module 5 Leads	12 V	Isolated Module	80 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	10.8 V	83 mA	1	85 °C	-40 C
Recom Power RBM-0515S/P	ITE (Commercial) Medical	5.5 V	6-SIP Module 5 Leads	15 V	Isolated Module	84 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	4.5 V	66 mA	1	85 °C	-40 C
Recom Power RBM-0515S	ITE (Commercial) Medical	5.5 V	6-SIP Module 5 Leads	15 V	Isolated Module	84 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	4.5 V	66 mA	1	85 °C	-40 C
Recom Power RBM-1215S/P	ITE (Commercial) Medical	13.2 V	6-SIP Module 5 Leads	15 V	Isolated Module	84 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	10.8 V	66 mA	1	85 °C	-40 C
Recom Power RBM-0505S	ITE (Commercial) Medical	5.5 V	6-SIP Module 5 Leads	5 V	Isolated Module	78 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	4.5 V	200 mA	1	85 °C	-40 C
Recom Power RBM-1212S/P	ITE (Commercial) Medical	13.2 V	6-SIP Module 5 Leads	12 V	Isolated Module	80 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	10.8 V	83 mA	1	85 °C	-40 C
Recom Power RBM-0512S	ITE (Commercial) Medical	5.5 V	6-SIP Module 5 Leads	12 V	Isolated Module	80 %	SCP	Through Hole	7.7 mm	0.24 "	16.5 mm	0.3 in	6 mm	0.65 in	3000 V	4.5 V	83 mA	1	85 °C	-40 C
