0ADA Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

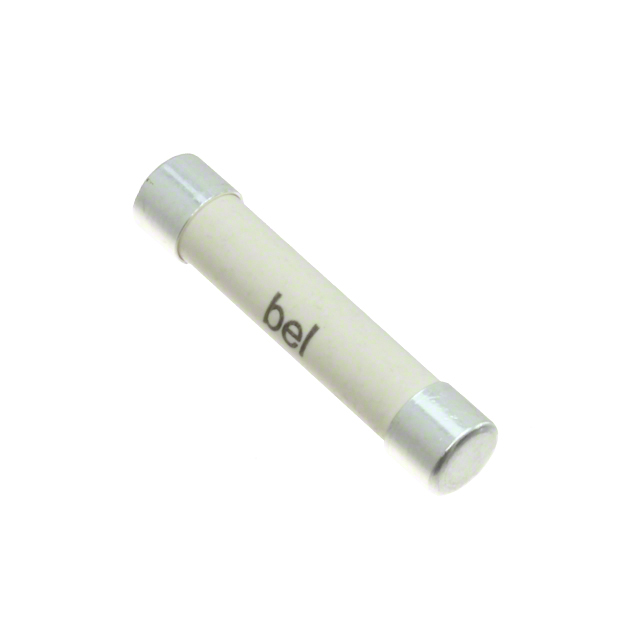

CARTRIDGE FUSES FUSE, CERAMIC TUBE 3.15A, 600VAC/600VDC
| Part | Mounting Type | Melting I²t | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) | Fuse Type | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case [y] | Package / Case [x] | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Requires Holder | 9.92 | 600 V | 600 V | 3.15 A | Cartridge Ceramic | Fast Blow | -55 C | 125 °C | 0.25 in | 3AB 3AG | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | ||
 Bel Fuse Inc. | Requires Holder | 187.2 | 600 V | 600 V | 12 Amps | Cartridge Ceramic | Fast Blow | -55 C | 125 °C | 0.25 in | 3AB 3AG | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | 0.0128 Ohms |
