DPM 950 Series
Manufacturer: Lascar Electronics
Beta
⌘K

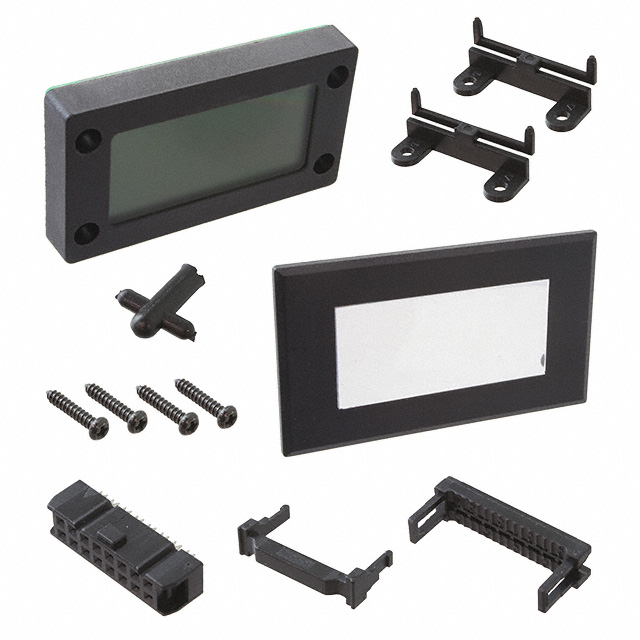

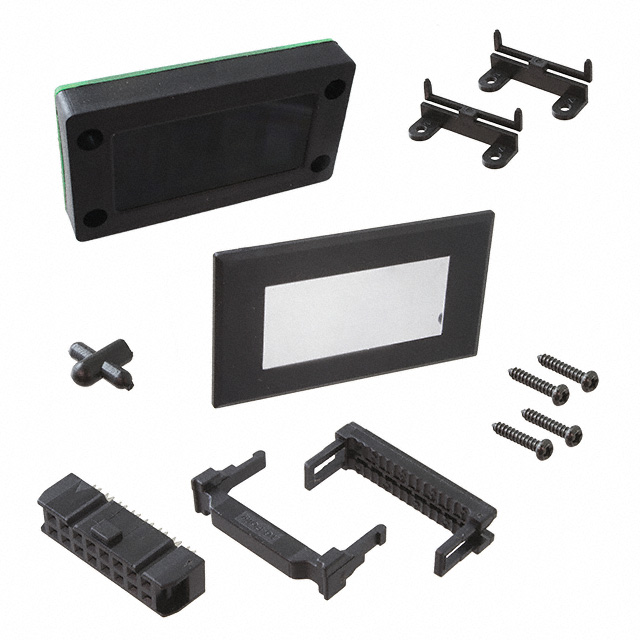

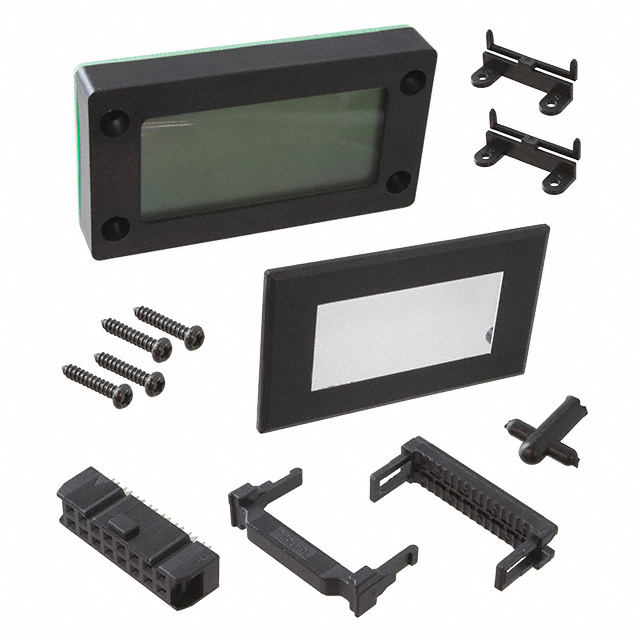

PROCESS METER LCD PNL MOUNT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Measuring Type | Display Type | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Measuring Range [Max] | Measuring Range [Min] | Display Characters - Height [z] | Display Characters - Height [z] | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Output Type | Number of Characters Per Row [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

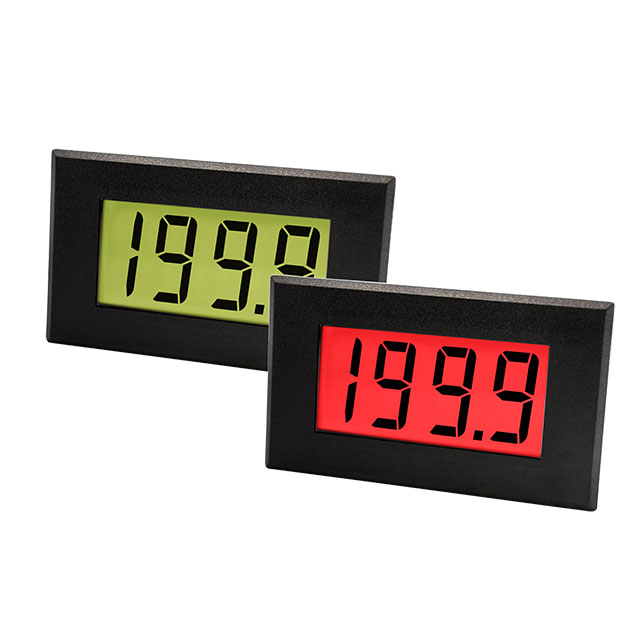

 Lascar Electronics | 50 °C | 0 °C | Voltage | Black Characters Green/Red Backlight | PC Pin | 72 mm | 40 mm | 200 mVDC | -200 mVDC | 0.748 " | 19 mm | 5.5 V | 4.5 V | Voltmeter | FA2 Pico-SPOX | 3.5 | Panel Mount |
 Lascar Electronics | 50 °C | 0 °C | Voltage | PC Pin | 72 mm | 40 mm | 200 mVDC | -200 mVDC | 0.748 " | 19 mm | 6.5 V | 3.5 V | Voltmeter | FA2 Pico-SPOX | 3.5 | Panel Mount | |
 Lascar Electronics | 50 °C | 0 °C | Voltage | LCD - Black Characters | PC Pin | 72 mm | 40 mm | 200 mVDC | -200 mVDC | 0.748 " | 19 mm | 7.5 V | 4.75 V | Voltmeter | FA2 Pico-SPOX | 3.5 | Panel Mount |
