IRLHS6242 Series
Manufacturer: INFINEON
Beta
⌘K

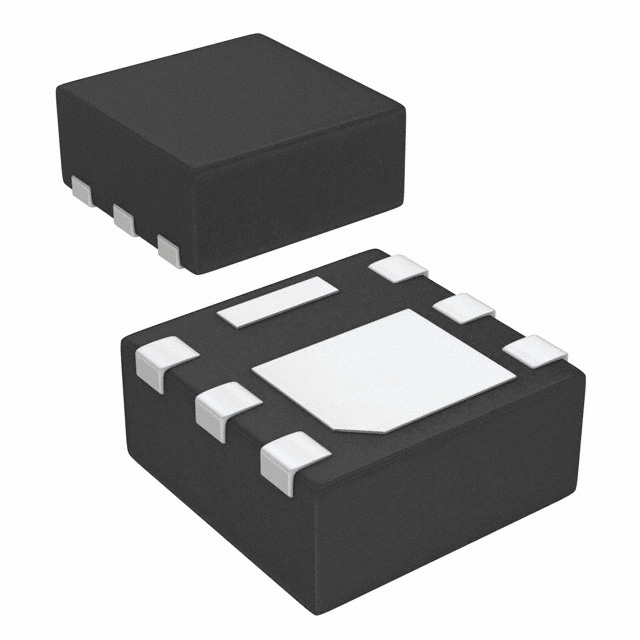

IR MOSFET™ N-CHANNEL POWER MOSFET ; PQFN 2 X 2 PACKAGE; 11.7 MOHM;
| Part | Current - Continuous Drain (Id) @ 25°C | Technology | Mounting Type | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | Vgs (Max) | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Rds On (Max) @ Id, Vgs | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 10 A 12 A | MOSFET (Metal Oxide) | Surface Mount | 1.1 V | 14 nC | 2.5 V | 4.5 V | 12 V | 1.98 W 9.6 W | 20 V | 1110 pF | 11.7 mOhm | 150 °C | -55 °C | N-Channel | 6-PowerVDFN |
