302-S40 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

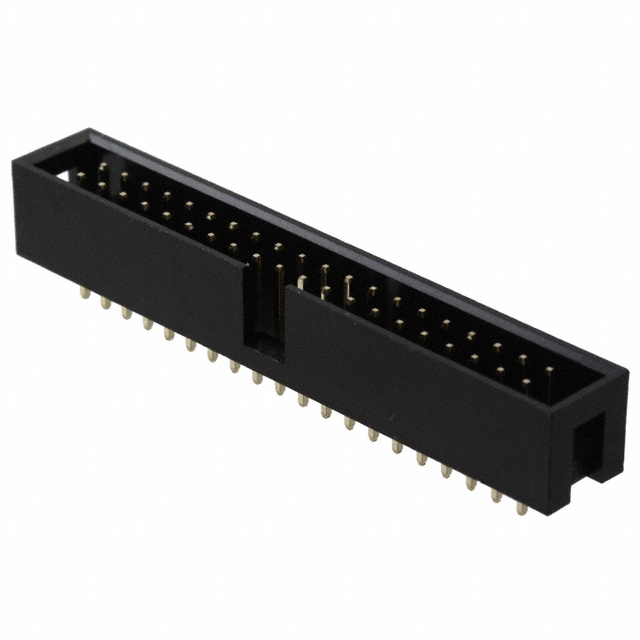

CONN HEADER VERT 40POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Mounting Type | Style | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Shape | Fastening Type | Number of Positions Loaded | Number of Positions | Connector Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Voltage Rating | Insulation Material | Termination | Number of Rows [custom] | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Type | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Black | Gold | 0.122 in | 3.1 mm | Shrouded - 4 Wall | Through Hole | Board to Cable/Wire | Brass | -40 C | 105 ░C | UL94 V-0 | Square | Push-Pull | All | 40 | Header | 0.358 " | 9.1 mm | 0.1 " | 2.54 mm | 250 V | Polyester Glass Filled | Solder | 2 | Flash | 3 A | Male Pin | Keying Slot | 0.1 in | 2.54 mm | Gold |
