QB0402 Series

Catalog

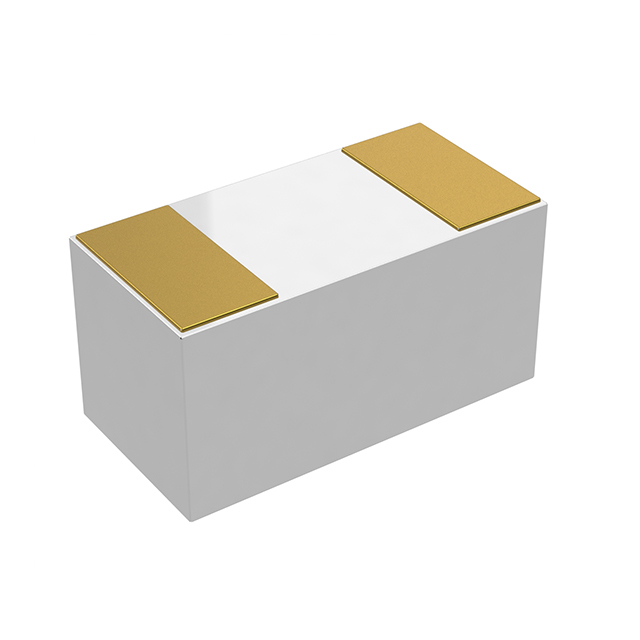

THERMAL CONDUCTOR Q-BRIDGE

Part	Material	Thermal Resistivity	Thermal Resistivity	Thermal Conductivity	Type	Outline [x]	Outline [y]	Shape	Usage	Thickness	Thickness
KYOCERA AVX QB0402A20ESC	Aluminum Nitride	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402A20EST\500	Aluminum Nitride	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402A20WYT	Aluminum Nitride	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402A20WYT\500	Aluminum Nitride	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402A20ESS	Aluminum Nitride	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402B20EST\500	Beryllium Oxide	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402B20ESC	Beryllium Oxide	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402B20ESS	Beryllium Oxide	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402A20WYS	Aluminum Nitride	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
KYOCERA AVX QB0402B20WYS	Beryllium Oxide	16 °C/W	25 °C/W	40 W/m-K 61 W/m-K	Thermal Bridge Jumper	1.02 mm	0.51 mm	Rectangular	Heat Transfer	0.002 in	0.051 mm
