T41425 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

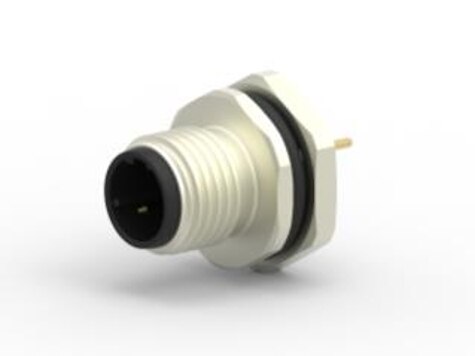

CIRCULAR METRIC CONNECTORS M12,FRONT MOUNTING MALE,D CODE,2P
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Material | Insert Material | Color | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Fastening Type | Primary Material | Termination | Ingress Protection | Connector Type | Shielding | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Current Rating (Amps) | Orientation | Mounting Feature | Voltage Rating | Shell Finish | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Industrial | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Silver | UL94 V-0 | Panel Mount Through Hole | Gold | Threaded | Metal | Solder | IP67 - Dust Tight Waterproof | Receptacle Male Pins | Unshielded | 2 | 85 °C | -40 C | M12-2 | 4 A | D | Bulkhead - Front Side Nut | 250 V | Nickel | Copper Alloy |
