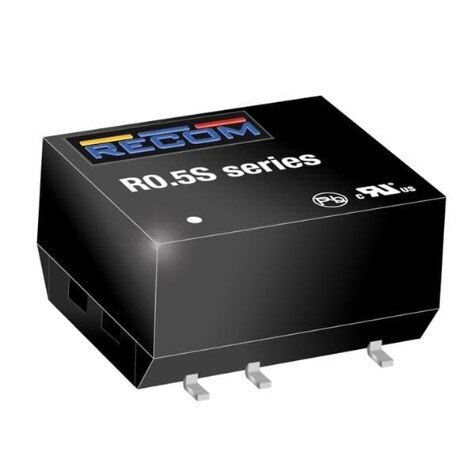

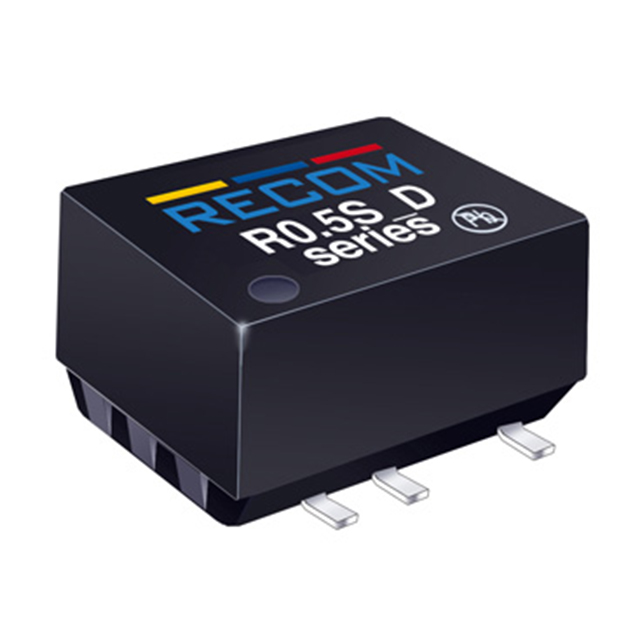

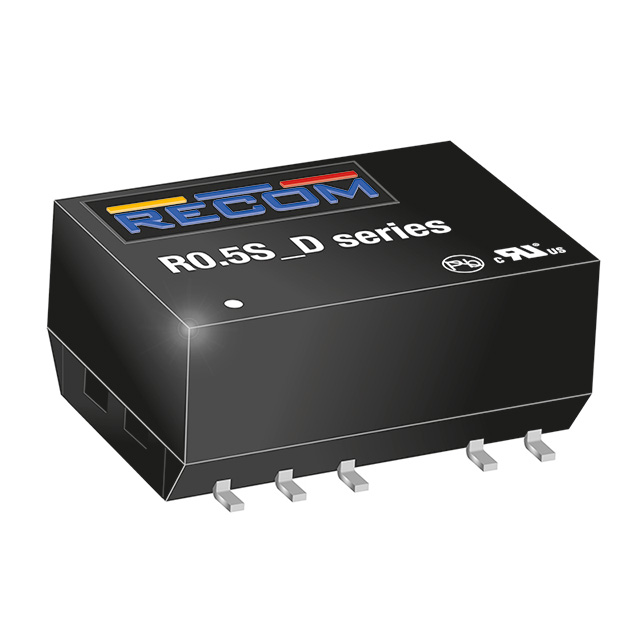

R0.5S Series
Manufacturer: Recom Power
Beta
⌘K
0.5W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES
| Part | Type | Voltage - Output 1 | Features | Voltage - Isolation | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Voltage - Input (Min) [Min] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Isolated Module | 12 V | SCP | 1000 V | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 0.5 W | 21.6 V | 1 | 42 mA | 26.4 V | 8-SMD Module 5 Leads | -40 C | 100 °C | 77 % | ITE (Commercial) |
 Recom Power | Isolated Module | 12 V | SCP | 3000 V | Surface Mount | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 0.5 W | 2.97 V | 1 | 42 mA | 3.63 V | 12-SMD Module 10 Leads | -40 C | 100 °C | 77 % | ITE (Commercial) |
 Recom Power | Isolated Module | 12 V | SCP | 3000 V | Surface Mount | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 0.5 W | 21.6 V | 1 | 42 mA | 26.4 V | 12-SMD Module 10 Leads | -40 C | 100 °C | 77 % | ITE (Commercial) |
Recom Power | Isolated Module | 15 V | SCP | 1000 V | Surface Mount | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 0.5 W | 10.8 V | 1 | 33 mA | 13.2 V | 12-SMD Module 10 Leads | -40 C | 100 °C | 75 % | ITE (Commercial) |
Recom Power | Isolated Module | 15 V | SCP | 1000 V | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 0.5 W | 10.8 V | 1 | 33 mA | 13.2 V | 8-SMD Module | -40 C | 100 °C | 75 % | ITE (Commercial) |
Recom Power | Isolated Module | 12 V | SCP | 1000 V | Surface Mount | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 0.5 W | 4.5 V | 1 | 42 mA | 5.5 V | 12-SMD Module 10 Leads | -40 C | 100 °C | 77 % | ITE (Commercial) |
 Recom Power | Isolated Module | 5 V | SCP | 1000 V | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 0.5 W | 2.97 V | 1 | 100 mA | 3.63 V | 8-SMD Module 5 Leads | -40 C | 100 °C | 80 % | ITE (Commercial) |
Recom Power | Isolated Module | 15 V | SCP | 3000 V | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 0.5 W | 4.5 V | 1 | 33 mA | 5.5 V | 8-SMD Module 5 Leads | -40 C | 100 °C | 79 % | ITE (Commercial) |
Recom Power | Isolated Module | 15 V | SCP | 1000 V | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 0.5 W | 2.97 V | 1 | 33 mA | 3.63 V | 8-SMD Module | -40 C | 100 °C | 77 % | ITE (Commercial) |
 Recom Power | Isolated Module | 12 V | SCP | 1000 V | Surface Mount | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 0.5 W | 2.97 V | 1 | 42 mA | 3.63 V | 12-SMD Module 10 Leads | -40 C | 100 °C | 77 % | ITE (Commercial) |
