6300FC Series
Manufacturer: Belden Inc.
Beta
⌘K

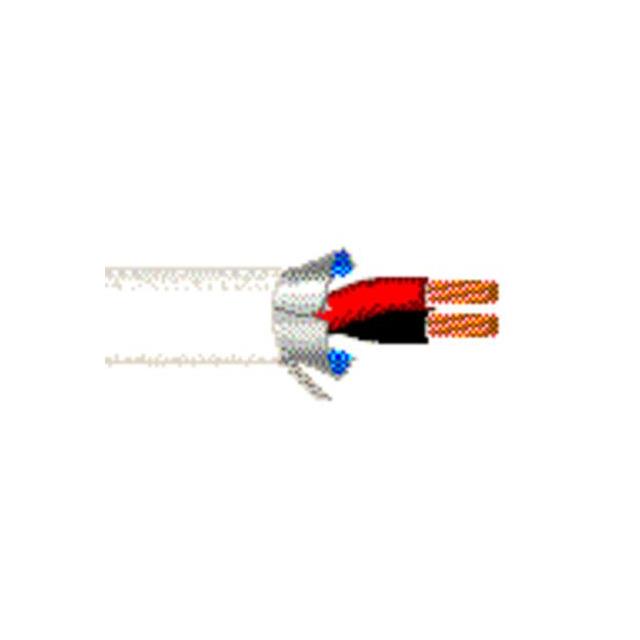

CABLE 2COND 18AWG NATURAL
| Part | Shield Coverage | Shield Material | Jacket Color | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Usage | Wire Gauge | Ratings | Number of Conductors | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Natural | Copper Bare | Foil | 0.155 in | 3.94 mm | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Drain Wire Rip Cord | 26 AWG | 7 | 0.42 mm | 0.0165 in | Fluorinated Ethylene-Propylene (FEP) | Multi-Conductor | 75 ░C | 0 °C | 304.8 m | 1000 ft | Security Sound | 18 AWG | UL Style CMP | 2 | 300 VDC |
