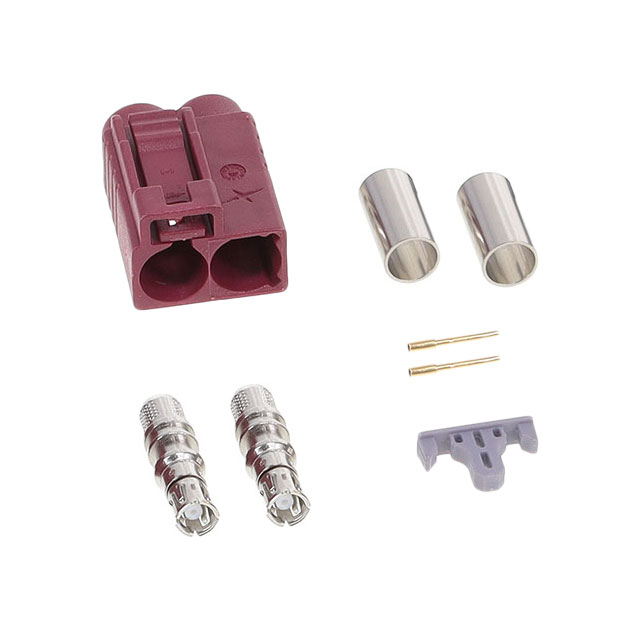

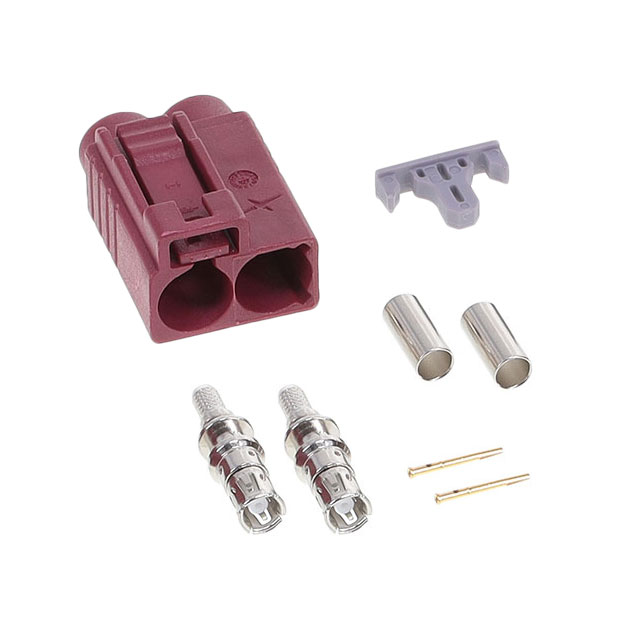

DUAL FAKRA CODE D SMB(F)ST_ FOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Frequency - Max [Max] | Fastening Type | Shield Termination | Contact Termination | Features | Number of Ports | Cable Group | Cable Group | Connector Style | Housing Color | Connector Type | Mounting Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taoglas Limited | -40 C | 105 ░C | 25 | 6000 MHz | Latch Lock | Crimp | Crimp | Code D | 2 | RG-174 | 316 | Fakra SMB | Bordeaux Violet | Female Socket Jack | Free Hanging (In-Line) | 50 Ohms |
 Taoglas Limited | -40 C | 105 ░C | 25 | 6000 MHz | Latch Lock | Crimp | Crimp | Code D | 2 | RG-174 | 316 | Fakra SMB | Bordeaux Violet | Female Socket Jack | Free Hanging (In-Line) | 50 Ohms |
