51-425 Series
Manufacturer: EAO
Beta
⌘K

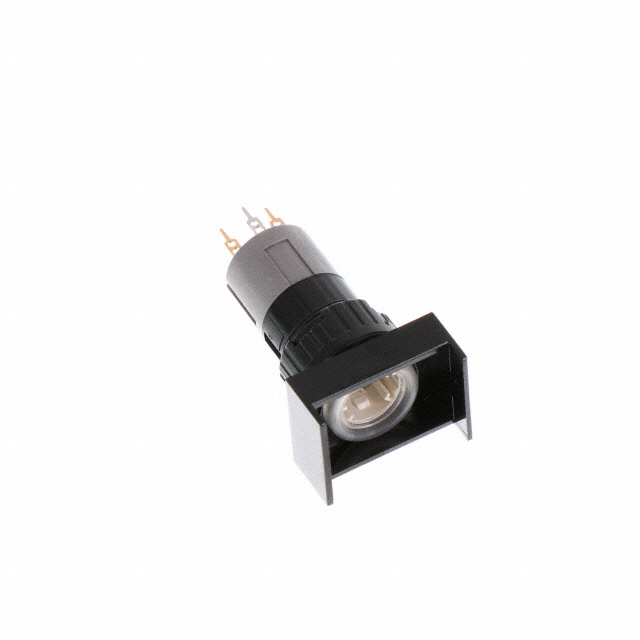

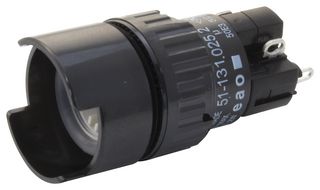

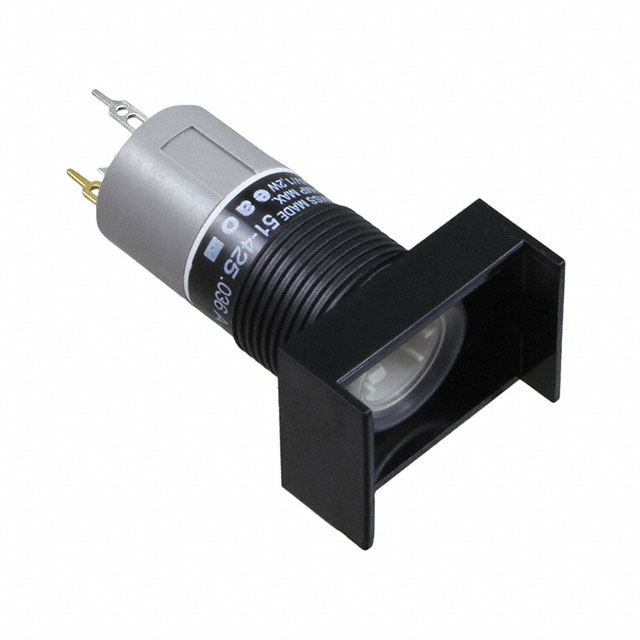

PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, SPST-NO, MOMENTARY, RECTANGULAR
| Part | Mechanical Life | Current Rating (Amps) | Mounting Type | Actuator Marking | Actuator Type | Type | Circuit | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Ingress Protection | Voltage Rating - DC | Switch Function | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 5000000 Cycles | 100 mA | Panel Mount Front | No Marking | Button Rectangular | Standard | SPST-NO | 16 mm | 42 V | IP65 - Dust Tight Water Resistant | 42 V | Off-Mom | PC Pin Solder Lug | 55 °C | -25 °C |
 EAO | No Marking |
