MMFTN/P Series

Catalog

MOSFETS MOSFET, SOT-26, 60V, 0.35A, 150C, N

Part	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Feature	Configuration	Mounting Type	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Current - Continuous Drain (Id) @ 25°C	Package / Case	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Power Dissipation (Max)	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Grade	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Qualification	Power Dissipation (Max) [Max]
Diotec Semiconductor MMFTN620KD	60 V	1.3 nC	SOT-26	1.5 V	35 pF	Logic Level Gate	2 N-Channel (Dual)	Surface Mount	1.5 Ohm	500 mW	350 mA	SOT-23-6 Thin TSOT-23-6	MOSFET (Metal Oxide)	150 °C	-55 °C

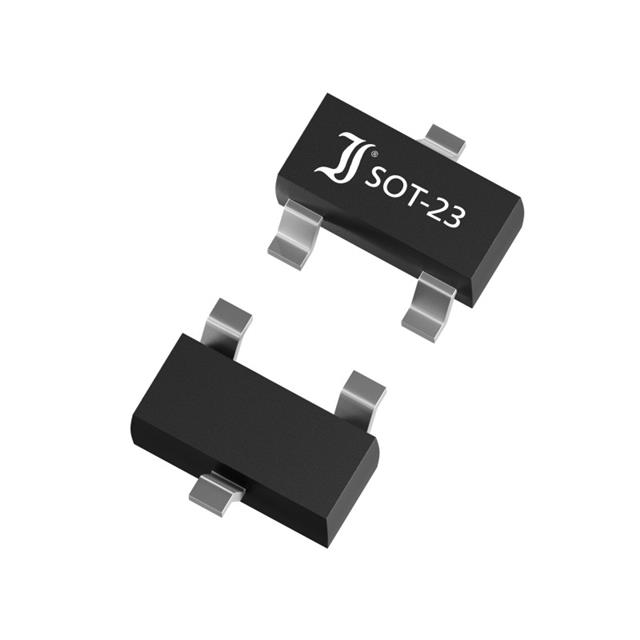

Diotec Semiconductor MMFTP3334K-AQ	30 V		SOT-23-3 (TO-236)	2 V				Surface Mount	71 mOhm		4 A	SC-59 SOT-23-3 TO-236-3	MOSFET (Metal Oxide)	150 °C	-55 °C	1 W	20 V	280 pF	P-Channel	Automotive	5.9 nC	4 V	10 V	AEC-Q101
Diotec Semiconductor MMFTP3334K			SOT-23-3 (TO-236)					Surface Mount			4 A	SC-59 SOT-23-3 TO-236-3							P-Channel						1 W
