UTS1J Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG MALE 4POS INLINE

Part	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Orientation	Shell Size - Insert Width	Shell Size - Insert Length	Contact Shape	Mounting Type	Material Flammability Rating	Note	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Contact Size	Type	Shell Material	Contact Type	Number of Positions	Housing Color	Shielding	Features	Insert Material	Position Types	Shell Size - Insert	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)

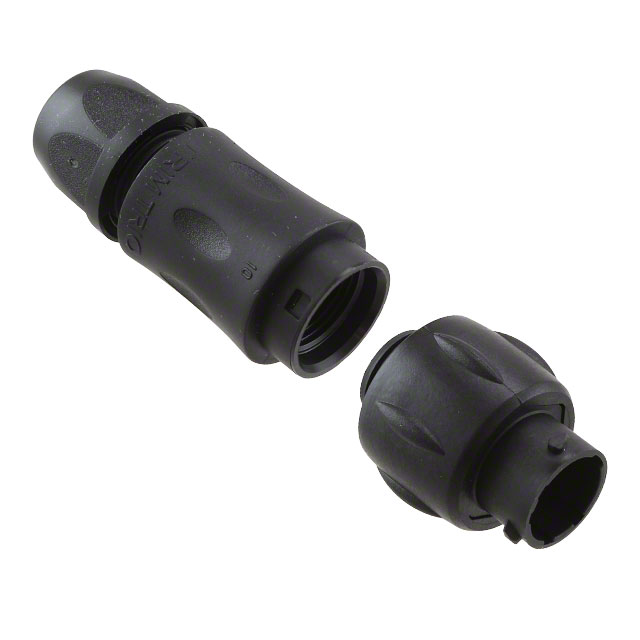

Amphenol Aerospace Operations UTS1JC104P	-40 °C	105 °C	Receptacle Housing	N (Normal)	4 mm	10 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 S	For Male Pins	Nylon Polyamide (PA)	Crimp	4	Black	Unshielded	Backshell	Nylon PA Polyamide

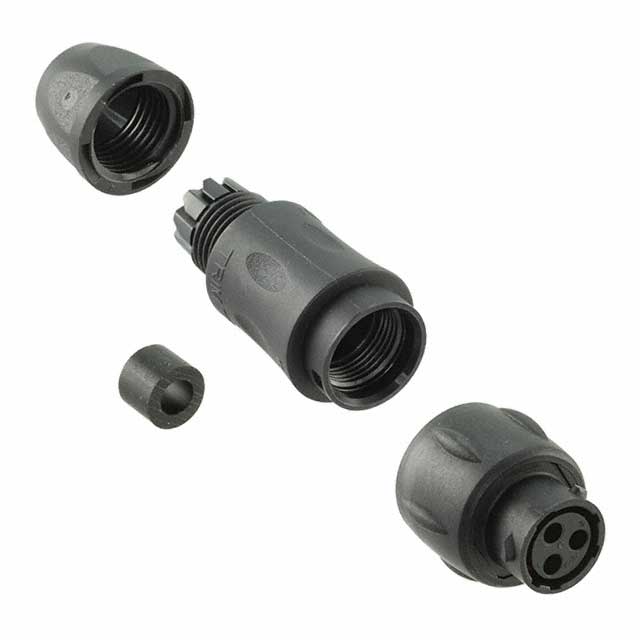

Amphenol Aerospace Operations UTS1JC103S	-40 °C	105 °C	Receptacle Housing	N (Normal)	3 mm	10 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 S	For Female Sockets	Nylon Polyamide (PA)	Crimp	3	Black	Unshielded	Backshell	Nylon PA Polyamide	PE

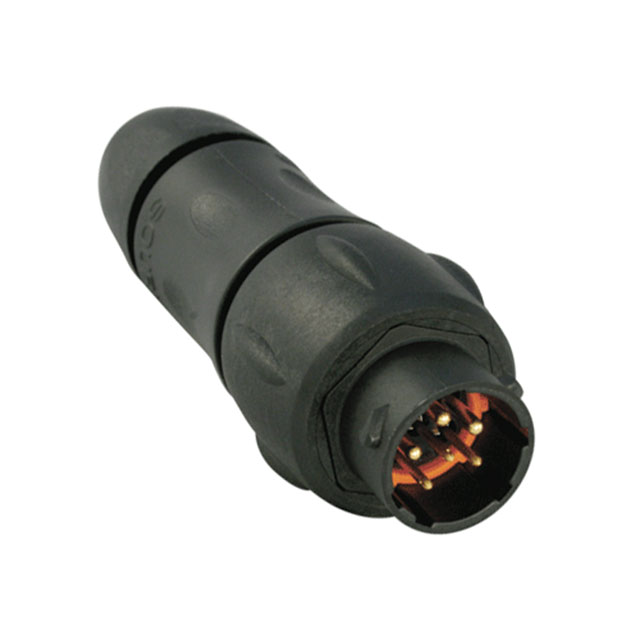

Amphenol Aerospace Operations UTS1JC103W3P	-40 °C	105 °C	Receptacle Housing	N (Normal)			Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 20	For Male Pins	Nylon Polyamide (PA)	Crimp	6	Black	Unshielded	Backshell	Nylon PA Polyamide		10-3W3

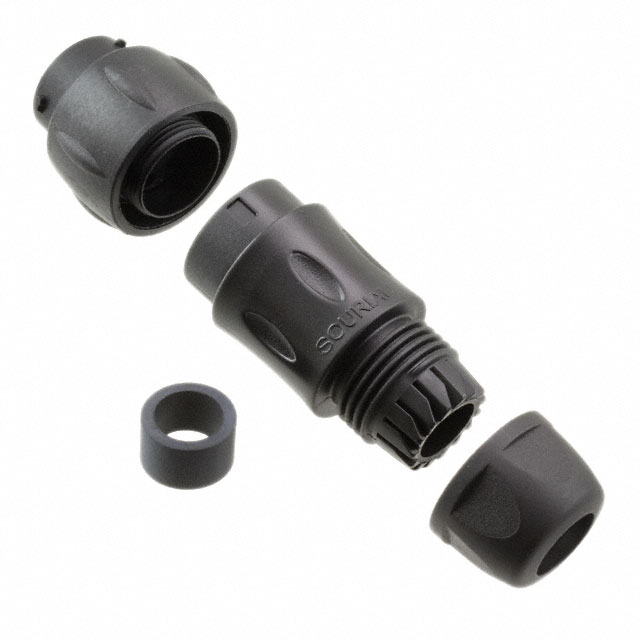

Amphenol Aerospace Operations UTS1JC147S	-40 °C	105 °C	Receptacle Housing	N (Normal)	7 mm	14 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 S	For Female Sockets	Nylon Polyamide (PA)	Crimp	7	Black	Unshielded	Backshell	Nylon PA Polyamide	PE
Amphenol Aerospace Operations UTS1JC148S	-40 °C	105 °C	Receptacle Housing	N (Normal)	8 mm	14 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 16	For Female Sockets	Nylon Polyamide (PA)	Crimp	8	Black	Unshielded	Backshell	Nylon PA Polyamide

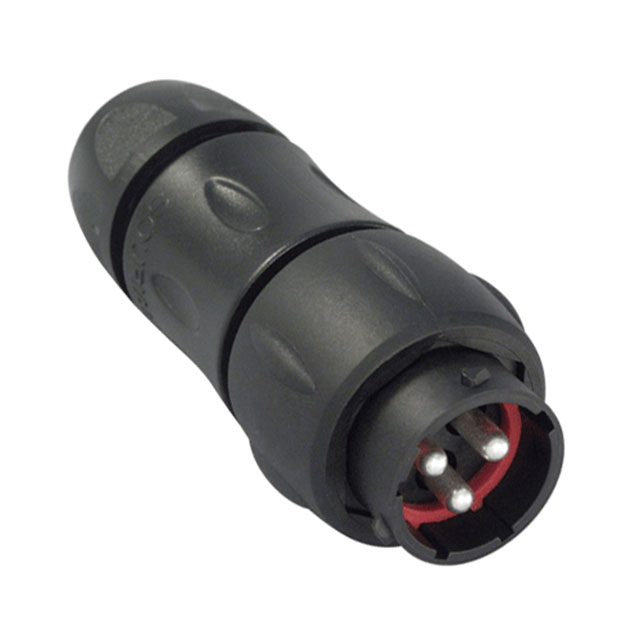

Amphenol Aerospace Operations UTS1JC142G1P	-40 °C	105 °C	Receptacle Housing	N (Normal)	2 mm	14 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	8	For Male Pins	Nylon Polyamide (PA)	Crimp	3	Black	Unshielded	Backshell	Nylon PA Polyamide	PE Power

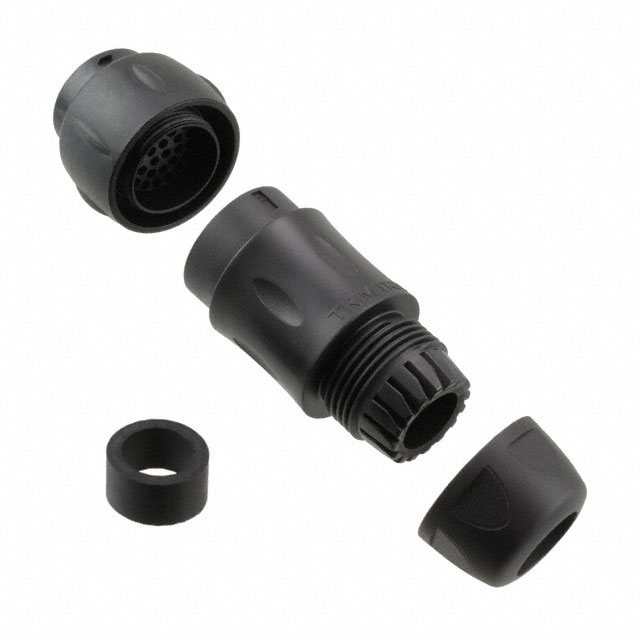

Amphenol Aerospace Operations UTS1JC1832S	-40 °C	105 °C	Receptacle Housing	N (Normal)			Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	20	For Female Sockets	Nylon Polyamide (PA)	Crimp	32	Black	Unshielded	Backshell	Nylon PA Polyamide			32	18
Amphenol Aerospace Operations UTS1JC124S	-40 °C	105 °C	Receptacle Housing	N (Normal)	4 mm	12 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 S	For Female Sockets	Nylon Polyamide (PA)	Crimp	4	Black	Unshielded	Backshell	Nylon PA Polyamide	PE

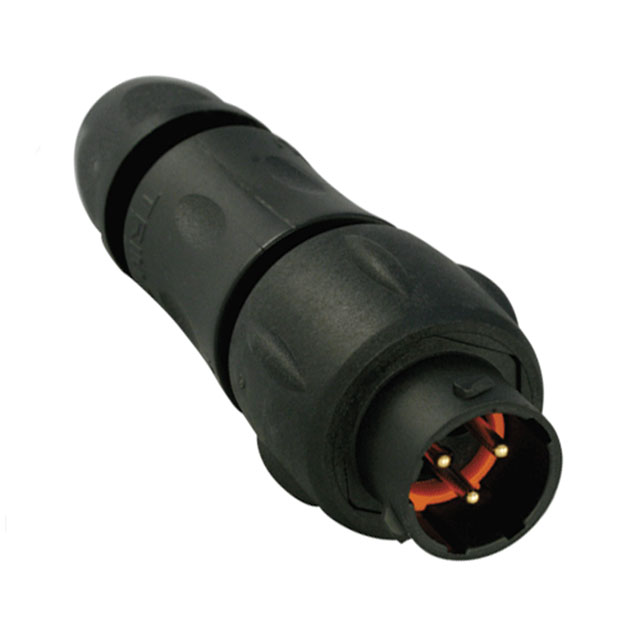

Amphenol Aerospace Operations UTS1JC103P	-40 °C	105 °C	Receptacle Housing	N (Normal)	3 mm	10 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 S	For Male Pins	Nylon Polyamide (PA)	Crimp	3	Black	Unshielded	Backshell	Nylon PA Polyamide	PE

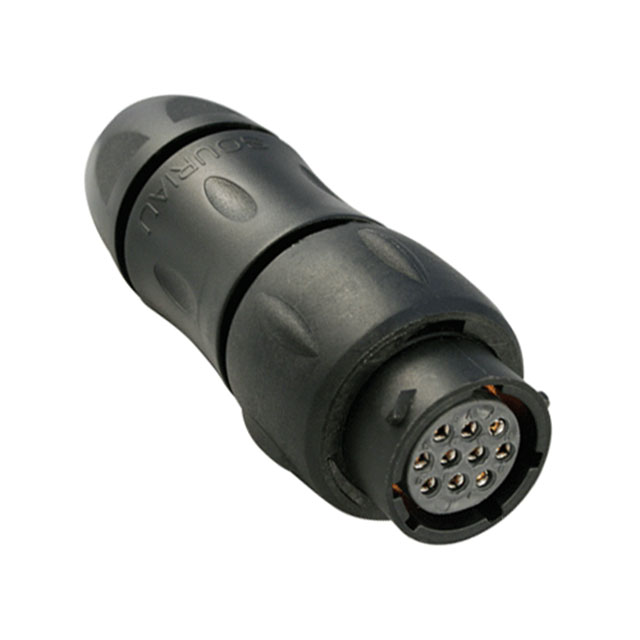

Amphenol Aerospace Operations UTS1JC1210S	-40 °C	105 °C	Receptacle Housing	N (Normal)	10 mm	12 mm	Circular	Free Hanging (In-Line)	UL94 V-0	Contacts Not Included	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	20	For Female Sockets	Nylon Polyamide (PA)	Crimp	10	Black	Unshielded	Backshell	Nylon PA Polyamide
