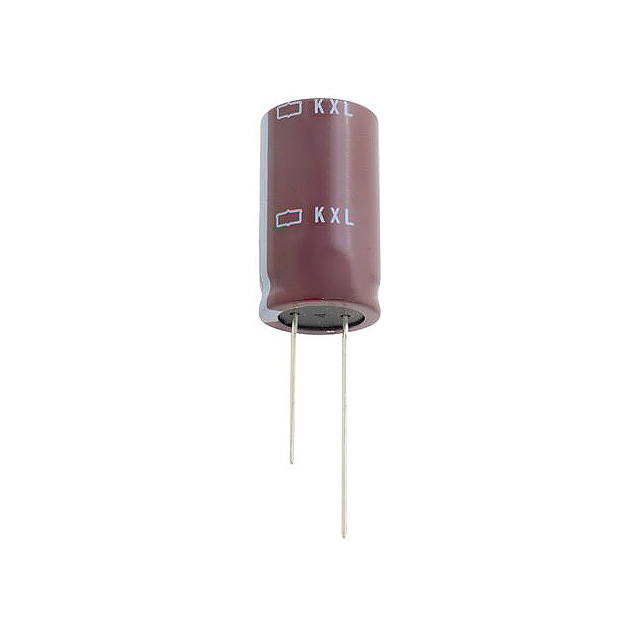

KXL Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 56UF 20% 400V LONG LIFE

Part	Mounting Type	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lifetime @ Temp.	Applications	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Polarization	Height - Seated (Max)
Chemi-Con EKXL401ELL560MK30S	Through Hole	56 µF	1.26 in	32 mm	495 mA	Can Radial	0.492 in	12.5 mm	400 V	12000 Hrs	General Purpose	0.197 "	5 mm	1.2375 A	-40 C	105 ░C	20 %	Polar

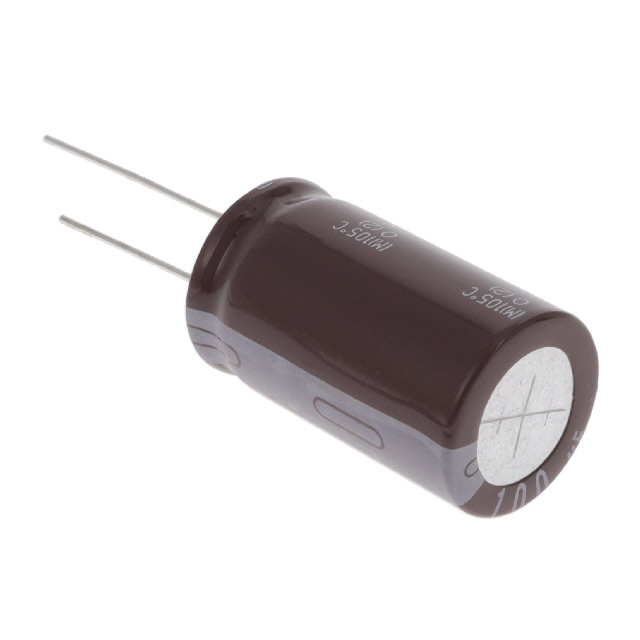

Chemi-Con EKXL451ELL101MM30S	Through Hole	100 µF	1.26 in	32 mm	750 mA	Can Radial	0.709 in	18 mm	450 V	12000 Hrs	General Purpose	0.295 in	7.5 mm	1.6875 A	-40 C	105 ░C	20 %	Polar
Chemi-Con EKXL421ELL101ML35S	Through Hole	100 µF	1.457 in		730 mA	Can Radial	0.63 in	16 mm	420 V	12000 Hrs	General Purpose	0.295 in	7.5 mm	1.6425 A	-40 C	105 ░C	20 %	Polar	37 mm
Chemi-Con EKXL421ELL680MU30S	Through Hole	68 µF	1.26 in	32 mm	560 mA	Can Radial	0.571 in	14.5 mm	420 V	12000 Hrs	General Purpose	0.295 in	7.5 mm	1.4 A	-40 C	105 ░C	20 %	Polar
