NEOHM SMA-A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SURFACE MOUNT MELF RESISTOR, 150 OHM, SMA-A SERIES, 350 V, METAL FILM, 1 W, ± 1%
| Part | Ratings | Composition | Number of Terminations [custom] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Tolerance | Features | Supplier Device Package | Resistance | Package / Case | Power (Watts) | Temperature Coefficient | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) [Min] | Power (Watts) [Max] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | AEC-Q200 | Thin Film | 2 | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 1 % | Automotive AEC-Q200 | 0207 | 150 Ohms | MELF 0207 | 1 W | 50 ppm/░C | 155 C | -55 C | |||
 TE Connectivity AMP Connectors | AEC-Q200 | Thin Film | 2 | 0.055 in | 0.138 in 1.4 mm | 1 % | Automotive AEC-Q200 | 0204 204 | 22 kOhms | MELF 0204 | 0.4 W | 50 ppm/░C | 155 C | -55 C | 2 W | 5 W | 3.5 mm | ||
 TE Connectivity AMP Connectors | AEC-Q200 | Metal Film | 2 | 0.043 in | 0.087 in | 1.1 mm | 2.2 mm | 0.1 % | Automotive AEC-Q200 | 0102 | 6.8 kOhms | MELF 0102 | 300 mW | 15 ppm/°C | 155 C | -55 C | |||
 TE Connectivity AMP Connectors | Metal Film | 2 | 0.043 in | 0.087 in | 1.1 mm | 2.2 mm | 1 % | Automotive AEC-Q200 | 0102 | 1.8 kOhms | MELF 0102 | 300 mW | 50 ppm/░C | 155 C | -55 C | ||||
TE Connectivity AMP Connectors | |||||||||||||||||||
 TE Connectivity AMP Connectors | Metal Film | 2 | 0.055 in | 0.138 in 1.4 mm | 0.1 % | Automotive AEC-Q200 | 0204 | 2200 Ohms | MELF 0204 | 0.4 W | 15 ppm/°C | 155 C | -55 C | 2 W | 5 W | 3.5 mm | |||

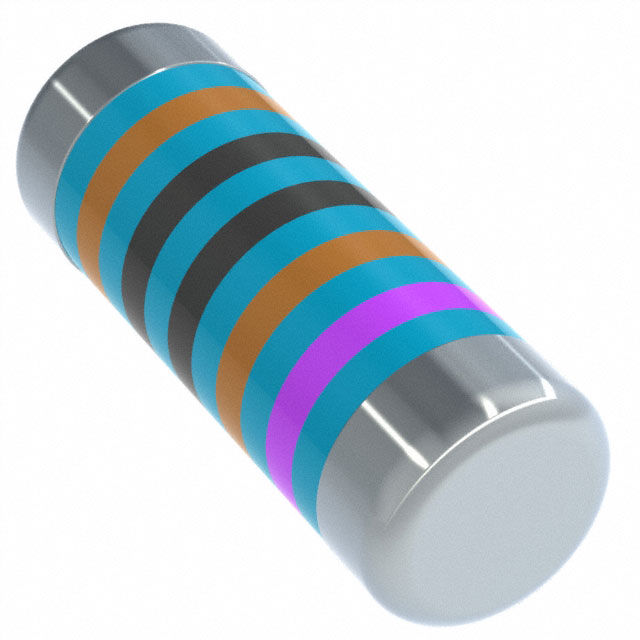

 TE Connectivity AMP Connectors | AEC-Q200 | Metal Film | 2 | 0.055 in | 0.138 in 1.4 mm | 0.1 % | Automotive AEC-Q200 | 0204 204 | 1000 Ohms | MELF 0204 | 0.4 W | 15 ppm/°C | 155 C | -55 C | 2 W | 5 W | 3.5 mm | ||

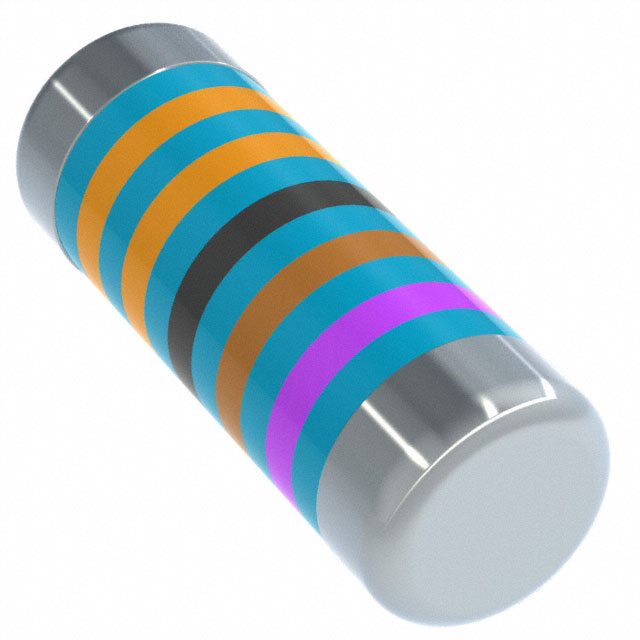

 TE Connectivity AMP Connectors | AEC-Q200 | Metal Film | 2 | 0.055 in | 0.138 in 1.4 mm | 0.1 % | Automotive AEC-Q200 | 0204 204 | 3300 Ohms | MELF 0204 | 0.4 W | 15 ppm/°C | 155 C | -55 C | 2 W | 5 W | 3.5 mm | ||
 TE Connectivity AMP Connectors | Metal Film | 2 | 0.043 in | 0.087 in | 1.1 mm | 2.2 mm | 1 % | Automotive AEC-Q200 | 0102 | 390 Ohms | MELF 0102 | 300 mW | 50 ppm/░C | 155 C | -55 C | ||||

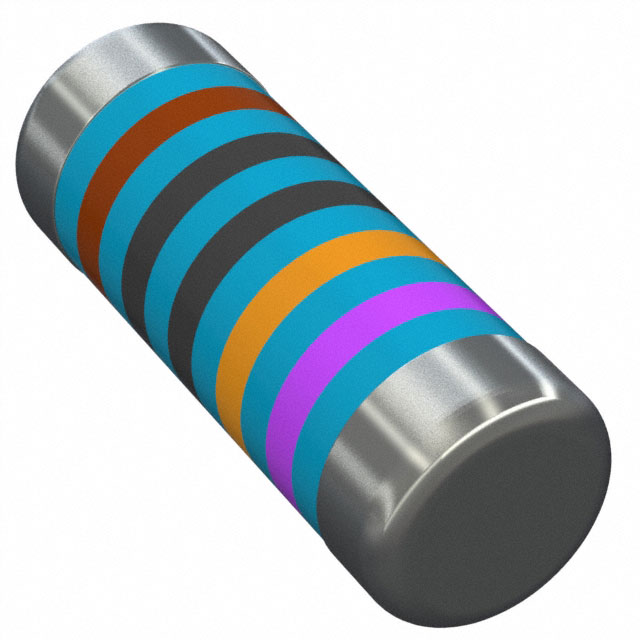

TE Connectivity AMP Connectors | Metal Film | 2 | 0.087 " | 0.232 " | 2.2 mm | 5.9 mm | 0.1 % | Automotive AEC-Q200 | 0207 | 100 kOhms | MELF 0207 | 1 W | 15 ppm/°C | 155 C | -55 C |
