MF300 Series

Catalog

DIODE MODULE GP 400V 150A F3

Part	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Speed	Reverse Recovery Time (trr)	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If

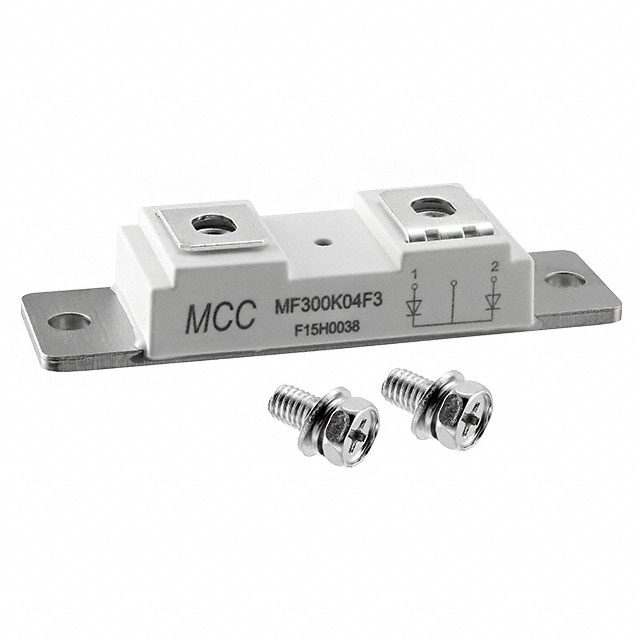

MCC (Micro Commercial Components) MF300K04F3-BP	500 µA	Chassis Mount	Standard	400 V	F3	200 mA 500 ns	90 ns	1 Pair Common Anode	150 A	1.05 V	-40 °C	150 °C	F3 Module
MCC (Micro Commercial Components) MF300U06F2-BP	500 µA	Chassis Mount	Standard	600 V	F2	200 mA 500 ns	145 ns				-40 °C	150 °C	Module	300 A	1.65 V
MCC (Micro Commercial Components) MF300U06F2-BP	500 µA	Chassis Mount	Standard	600 V	F2	200 mA 500 ns	145 ns				-40 °C	150 °C	Module	300 A	1.65 V
MCC (Micro Commercial Components) MF300U06F6-BP	500 µA	Chassis Mount	Standard	600 V	F6	200 mA 500 ns	145 ns				-40 °C	150 °C	Module	300 A	1.15 V
MCC (Micro Commercial Components) MF300U06F6-BP	500 µA	Chassis Mount	Standard	600 V	F6	200 mA 500 ns	145 ns				-40 °C	150 °C	Module	300 A	1.15 V
