ADS8412 Series
Manufacturer: Texas Instruments
Beta
⌘K
16-BIT 2MSPS PARALLEL ADC W/REF, UNIPOLAR FULLY DIFFERENTIAL INPUT
| Part | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Sampling Rate (Per Second) | Mounting Type | Package / Case | Number of A/D Converters | Architecture | Reference Type | Number of Inputs | Input Type | Voltage - Supply, Analog | Supplier Device Package | Ratio - S/H:ADC | Data Interface | Number of Bits | Configuration | Supplied Contents | Utilized IC / Part | Power (Typ) @ Conditions | Input Range [Min] | Input Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 5.25 V | 2.7 V | 85 °C | -40 °C | 2M | Surface Mount | 48-TQFP | 1 | SAR | External Internal | 1 | Differential | 5 V | 48-TQFP (7x7) | 1:1 | Parallel | 16 | S/H-ADC | |||||

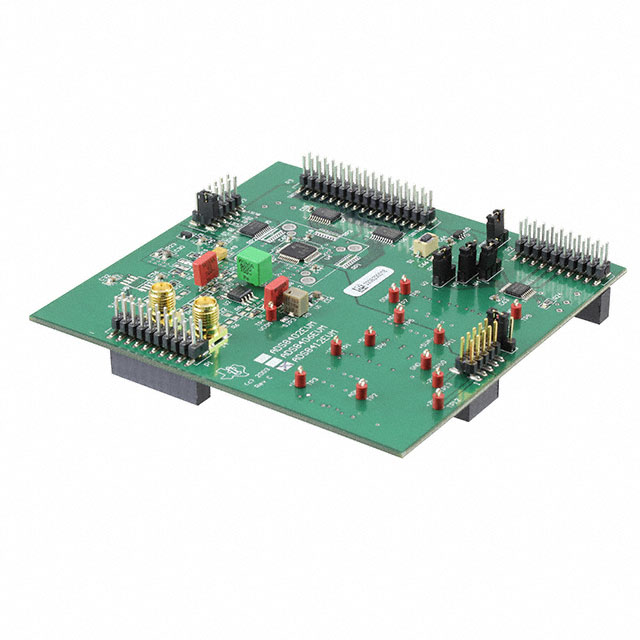

 Texas Instruments | 2M | 1 | Parallel | 16 | Board(s) | ADS8412 | 175 mW | 0 V | 4.096 V | ||||||||||||||
Texas Instruments | 5.25 V | 2.7 V | 85 °C | -40 °C | 2M | Surface Mount | 48-TQFP | 1 | SAR | External Internal | 1 | Differential | 5 V | 48-TQFP (7x7) | 1:1 | Parallel | 16 | S/H-ADC | |||||
Texas Instruments | 5.25 V | 2.7 V | 85 °C | -40 °C | 2M | Surface Mount | 48-TQFP | 1 | SAR | External Internal | 1 | Differential | 5 V | 48-TQFP (7x7) | 1:1 | Parallel | 16 | S/H-ADC | |||||
Texas Instruments | 5.25 V | 2.7 V | 85 °C | -40 °C | 2M | Surface Mount | 48-TQFP | 1 | SAR | External Internal | 1 | Differential | 5 V | 48-TQFP (7x7) | 1:1 | Parallel | 16 | S/H-ADC |
