5ETH9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Mechanical Life	Switch Travel	Actuator Type	Features	Actuator Orientation	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Ingress Protection	Termination Style	Contact Rating @ Voltage	Mounting Type	Switch Function	Circuit	Actuator Height off PCB, Vertical [z]	Operating Force

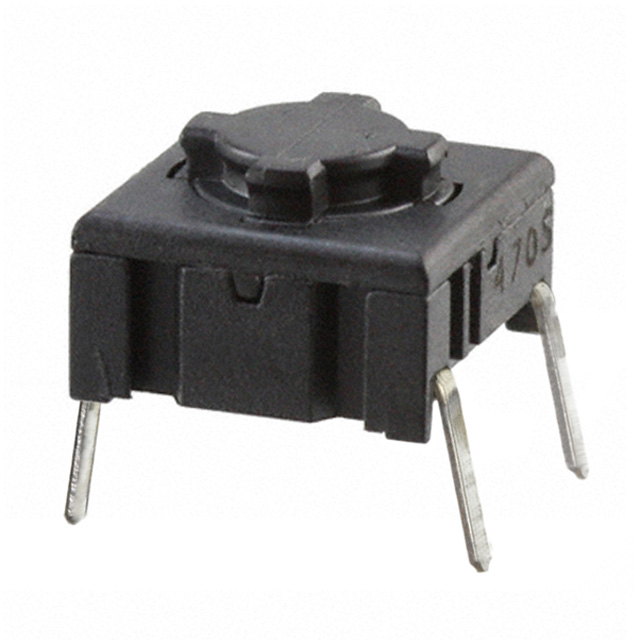

MEC Switches 5ETH965	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Plunger for Cap	Sealed - Flux Protection	Top Actuated	Non-Illuminated	160 °C	-40 C	10.1 mm	10.1 mm	IP67 - Dust Tight Waterproof	PC Pin	0.05 A 24 VDC	Through Hole	Off-Mom	SPST-NO	6.4 mm	650 gf

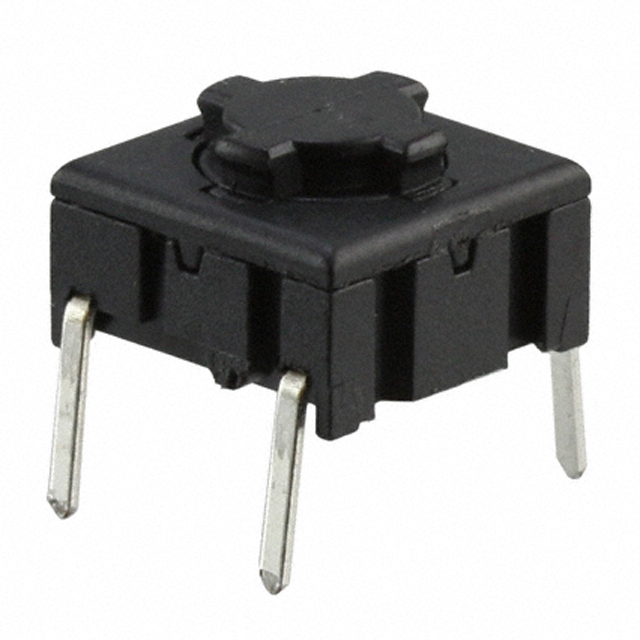

MEC Switches 5ETH935	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Plunger for Cap	Sealed - Flux Protection	Top Actuated	Non-Illuminated	160 °C	-40 C	10.1 mm	10.1 mm	IP67 - Dust Tight Waterproof	PC Pin	0.05 A 24 VDC	Through Hole	Off-Mom	SPST-NO	6.4 mm	350 gf
MEC Switches 5ETH920NCNO	Polyphenylene Sulfide (PPS)	1000000 Cycles	1 mm	Plunger for Cap	Sealed - Flux Protection	Top Actuated	Non-Illuminated	160 °C	-40 C	10.1 mm	10.1 mm	IP67 - Dust Tight Waterproof	PC Pin	0.05 A 24 VDC	Through Hole	On-Mom	SPDT	6.4 mm	0.2 kgf

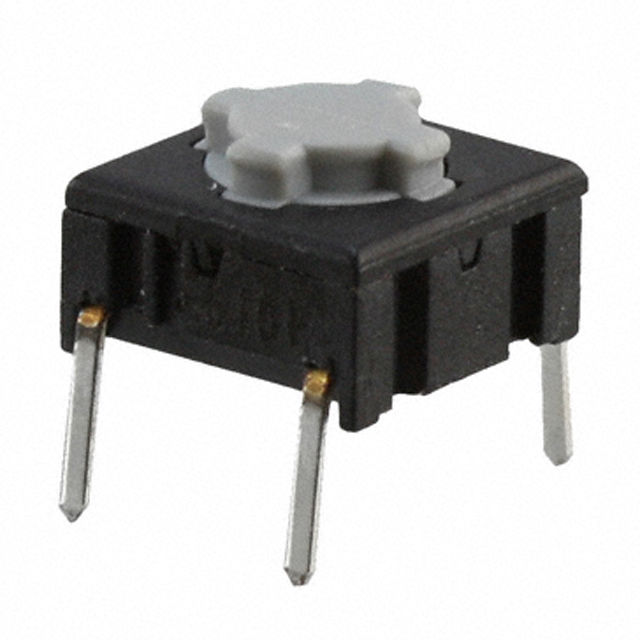

MEC Switches 5ETH920	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Plunger for Cap	Sealed - Flux Protection	Top Actuated	Non-Illuminated	160 °C	-40 C	10.1 mm	10.1 mm	IP67 - Dust Tight Waterproof	PC Pin	0.05 A 24 VDC	Through Hole	Off-Mom	SPST-NO	6.4 mm	0.2 kgf
MEC Switches 5ETH955NCNO	Polyphenylene Sulfide (PPS)	1000000 Cycles	1 mm	Plunger for Cap	Sealed - Flux Protection	Top Actuated	Non-Illuminated	160 °C	-40 C	10.1 mm	10.1 mm	IP67 - Dust Tight Waterproof	PC Pin	0.05 A 24 VDC	Through Hole	On-Mom	SPDT	6.4 mm	550 gf
