R12431 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

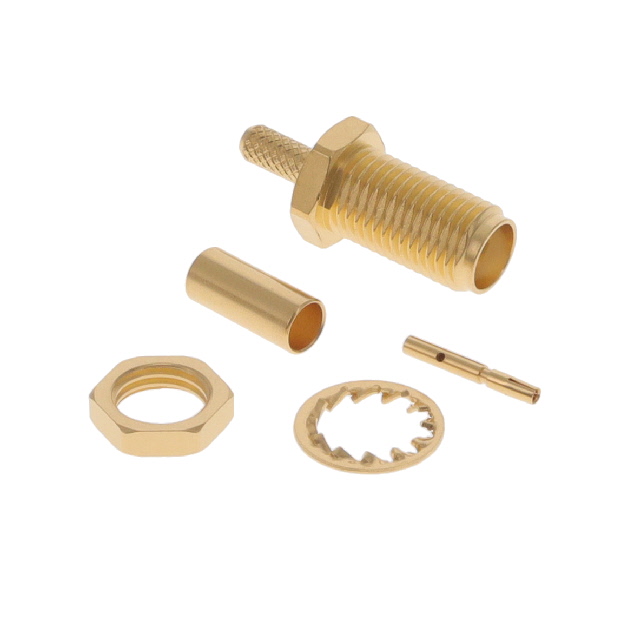

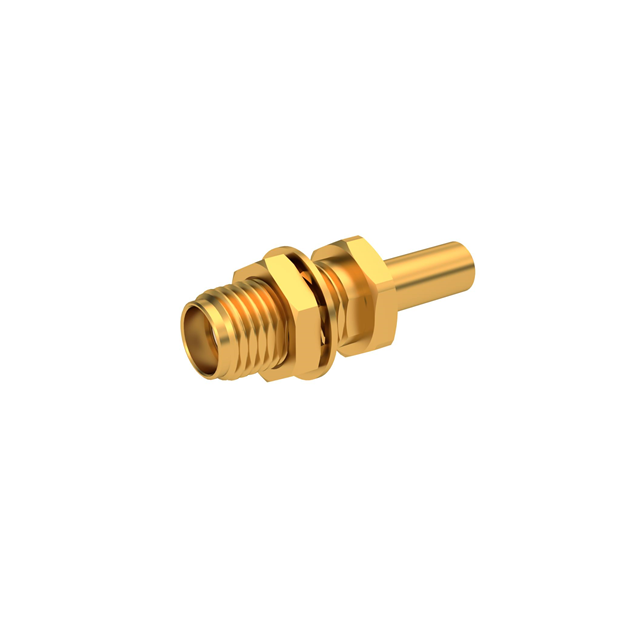

SMA / STRAIGHT BULKHEAD JACK FUL
| Part | Center Contact Plating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Body Finish | Impedance | Contact Termination | Fastening Type | Center Contact Material | Mounting Feature | Frequency - Max [Max] | Shield Termination | Cable Group | Connector Type | Connector Style | Number of Ports | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | White Bronze | 50 Ohms | Crimp | Threaded | Beryllium Copper | Bulkhead - Front Side Nut | 12.4 GHz | Crimp | 316 AEP-100FR RG-174 | Female Socket Jack | SMA | 1 | Panel Mount | Silver |
 Radiall USA, Inc. | Gold | 500 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Crimp | Threaded | Beryllium Copper | Bulkhead - Front Side Nut | 12.4 GHz | Crimp | 316 AEP-100FR RG-174 | Female Socket Jack | SMA | 1 | Panel Mount | Gold |
