842-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Number of Positions	Card Type	Termination	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Card Thickness [Max]	Card Thickness [Min]	Color	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Contact Type	Gender	Features
EDAC Inc. 842-090-540-212	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Wire Wrap	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	Cantilever	Female

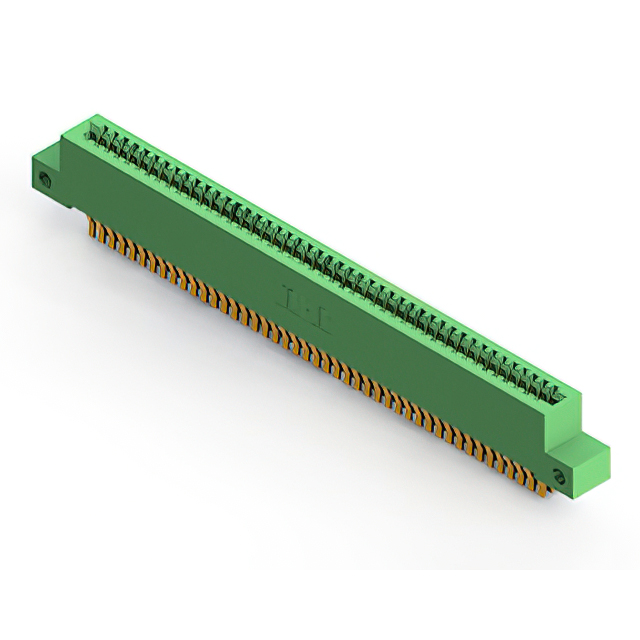

EDAC Inc. 842-090-560-212	2	Diallyl Phthalate (DAP)	Board Edge Straddle Mount	90	Non Specified - Dual Edge	Solder	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	Cantilever	Female	Card Extender
EDAC Inc. 842-090-500-212	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Solder Eyelet(s)	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	Cantilever	Female

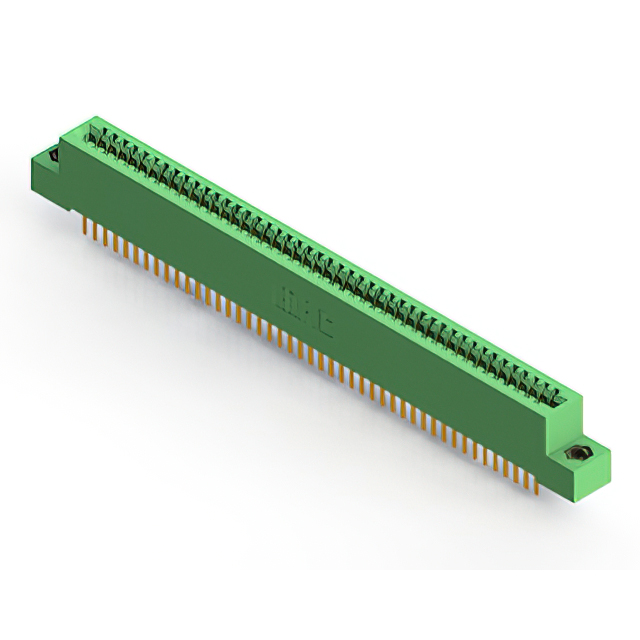

EDAC Inc. 842-090-520-208	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Solder	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	4-40 Flush Mount Threaded Insert Top Opening			Gold	Cantilever	Female
EDAC Inc. 842-090-542-207	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Wire Wrap	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	Flush Mount M3 Threaded Insert Top Opening			Gold	Cantilever	Female

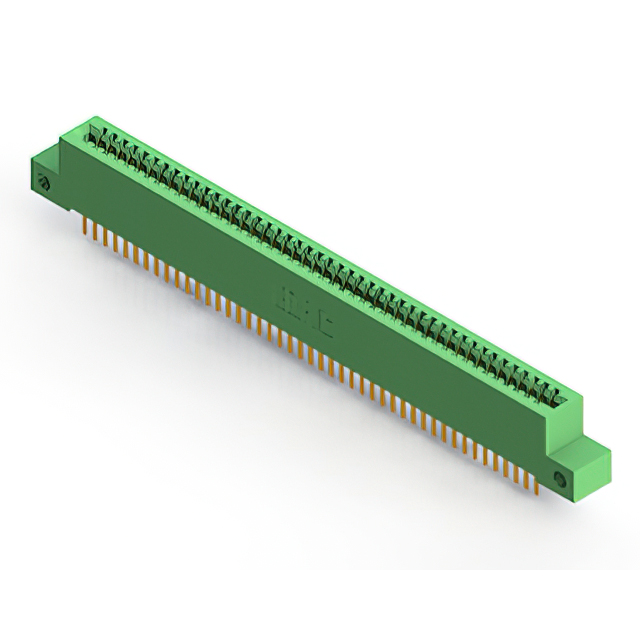

EDAC Inc. 842-090-520-212	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Solder	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	Cantilever	Female
EDAC Inc. 842-090-523-208	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Solder	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	4-40 Flush Mount Threaded Insert Top Opening			Gold	Cantilever	Female

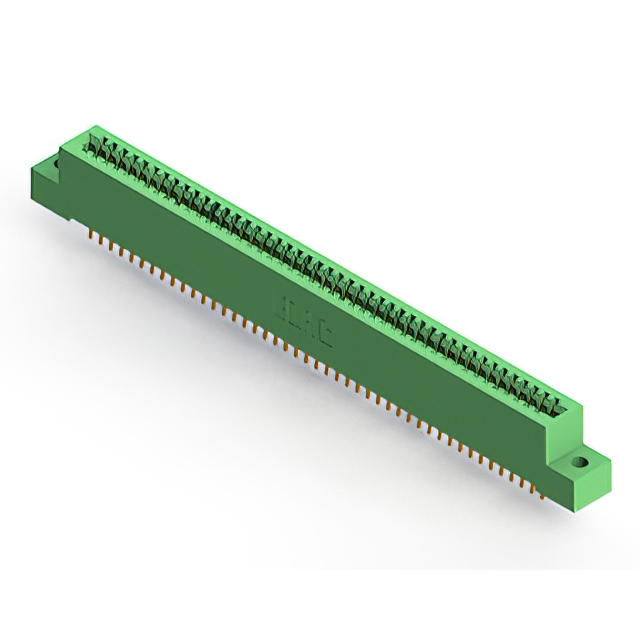

EDAC Inc. 842-090-556-202	2	Diallyl Phthalate (DAP)	Board Edge Straddle Mount	90	Non Specified - Dual Edge	Solder	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	Cantilever	Female	Card Extender
EDAC Inc. 842-090-558-201	2	Diallyl Phthalate (DAP)	Right Angle Through Hole	90	Non Specified - Dual Edge	Solder	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2				Gold	Cantilever	Female
EDAC Inc. 842-090-544-201	2	Diallyl Phthalate (DAP)	Through Hole	90	Non Specified - Dual Edge	Wire Wrap	45	125 °C	-40 C	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	0.25 Ám	10 Áin	Copper Alloy	2				Gold	Cantilever	Female
