GF-342 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE 4PDT 3A 125V
| Part | Actuator Material | Mechanical Life | Switch Travel | Electrical Life | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating - AC | Mounting Type | Contact Finish | Current Rating (Amps) | Switch Function | Termination Style | Circuit | Voltage Rating - DC | Contact Timing | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

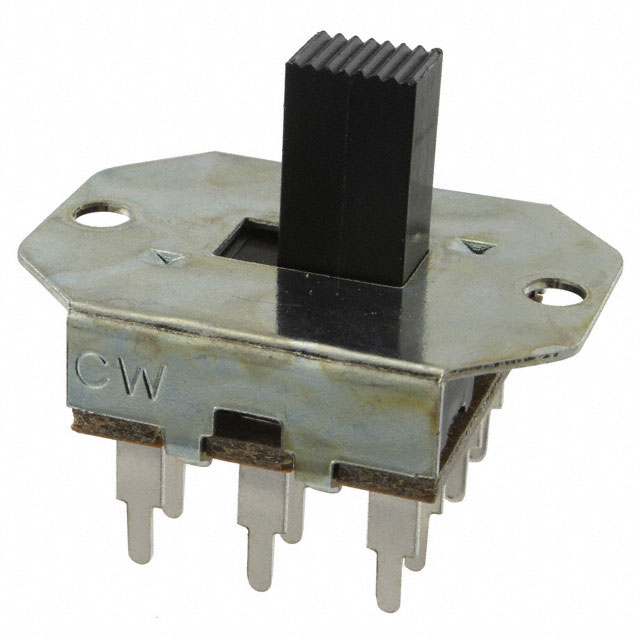

 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | 6000 Cycles | 0.5 in | -10 °C | 104 °C | Copper | 125 V | Panel Mount | Silver | 3 A 500 mA | On-On | PC Pin | 4PDT | 125 VDC | Not Specified | Standard |

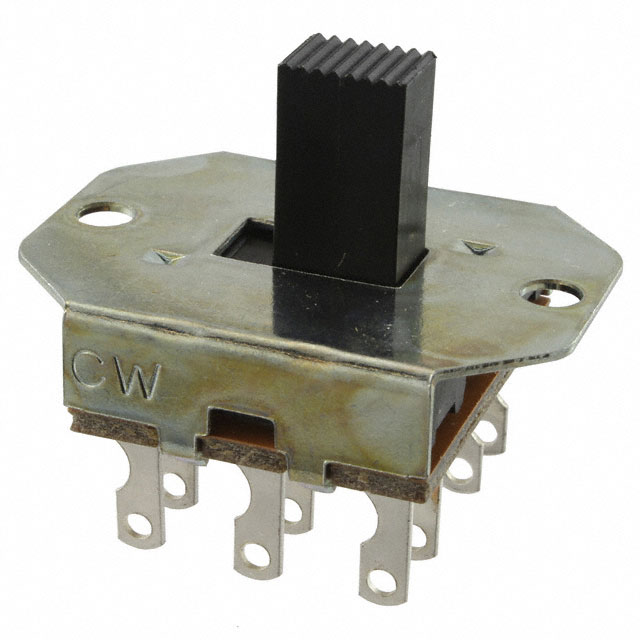

 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | 6000 Cycles | 0.5 in | -10 °C | 104 °C | Copper | 125 V | Panel Mount | Silver | 3 A 500 mA | On-On | Solder Lug | 4PDT | 125 VDC | Not Specified | Standard |

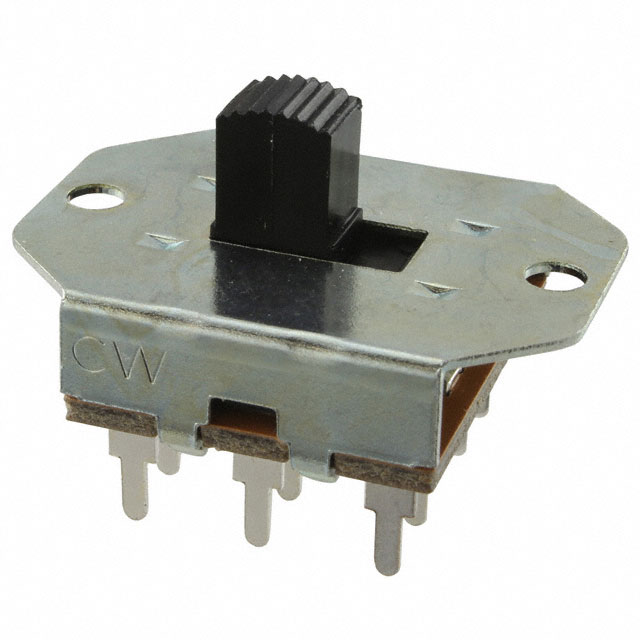

 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | 6000 Cycles | 8.74 mm | -10 °C | 104 °C | Copper | 125 V | Panel Mount | Silver | 3 A 500 mA | On-On | PC Pin | 4PDT | 125 VDC | Not Specified | Standard |
 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | 6000 Cycles | 8.74 mm | -10 °C | 104 °C | Copper | 125 V | Panel Mount | Silver | 3 A 500 mA | On-On | Solder Lug | 4PDT | 125 VDC | Not Specified | Standard |

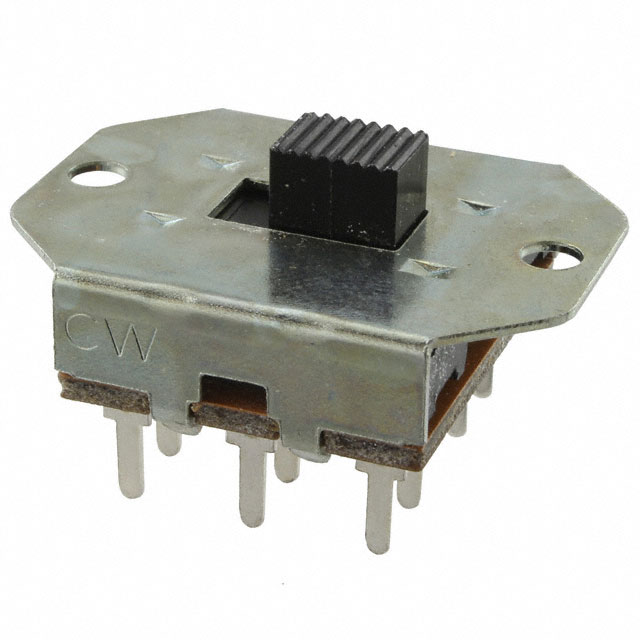

 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | 6000 Cycles | 4.78 mm | -10 °C | 104 °C | Copper | 125 V | Panel Mount | Silver | 3 A 500 mA | On-On | PC Pin | 4PDT | 125 VDC | Not Specified | Standard |
