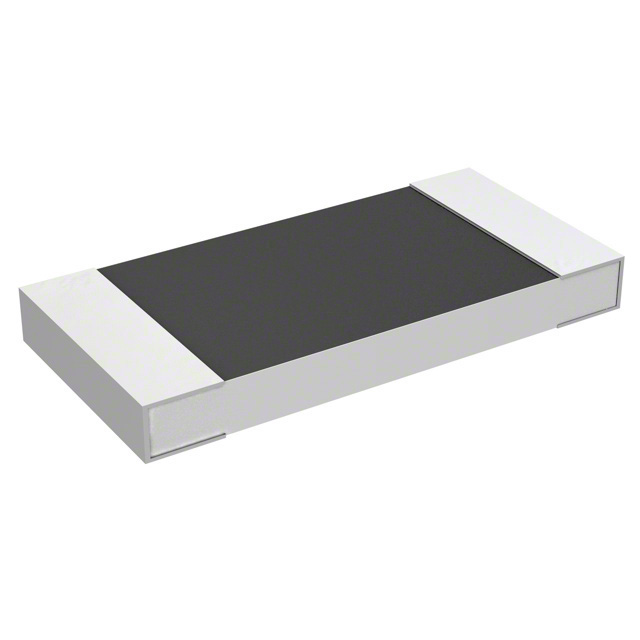

CGA0603 Series

Catalog

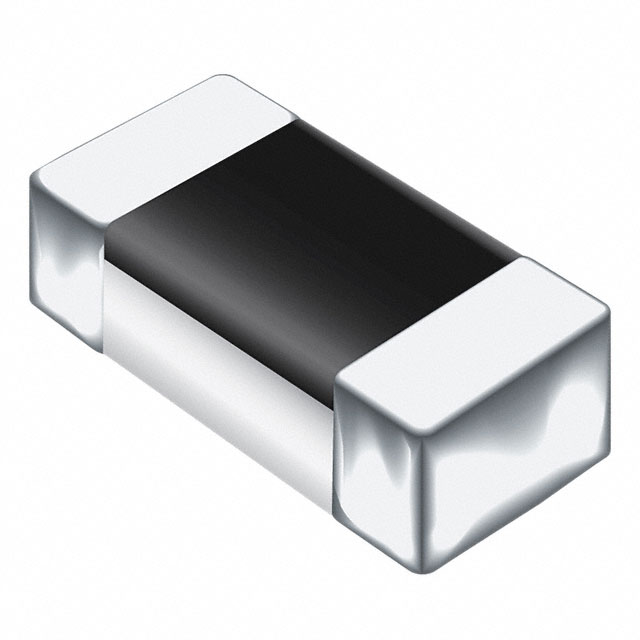

VARISTOR 33V 30A 0603

Part	Grade	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Number of Circuits	Energy	Qualification	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Maximum DC Volts [Max]	Mounting Type	Package / Case	Package / Case	Current - Surge	Maximum AC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. CGA0603MLA-22750E	Automotive	25 V	1 kHz 75 pF	1	0.075 J	AEC-Q200	41 V	33 V	22 V	MLCV Surface Mount	1608 Metric	0603	30 A	17 V	125 °C	-55 °C
Bourns Inc. CGA0603MLA-17300E	Automotive	21.6 V	1 kHz 30 pF	1	0.05 J	AEC-Q200	34.4 V	28 V	17 V	MLCV Surface Mount	1608 Metric	0603	2 A	14 V	125 °C	-55 °C
Bourns Inc. CGA0603MLA-31900E	Automotive	35 V	1 kHz 90 pF	1	0.2 J	AEC-Q200	43.9 V	39.45 V	31 V	MLCV Surface Mount	1608 Metric	0603	30 A	25 V	125 °C	-55 °C
Bourns Inc. CGA0603MLA-22161E	Automotive		1 kHz 160 pF	1	0.2 J	AEC-Q200	30.7 V	27.5 V	22 V	MLCV Surface Mount	1608 Metric	0603	30 A	17 V	125 °C	-55 °C
Bourns Inc. CGA0603MLC-05E	Automotive		0.5 pF 1 MHz	1		AEC-Q200			5 V	MLCV Surface Mount	1608 Metric	0603			125 °C	-55 C
Bourns Inc. CGA0603MLC-12E	Automotive		0.5 pF 1 MHz	1		AEC-Q200			12 V	MLCV Surface Mount	1608 Metric	0603			125 °C	-55 C
Bourns Inc. CGA0603MLA-26800E	Automotive	30 V	80 pF	1	0.1 J	AEC-Q200	43 V	36.5 V	26 V	MLCV Surface Mount	1608 Metric	0603	30 A	20 V	125 °C	-55 °C
Bourns Inc. CGA0603MLA-16121E	Automotive	22 V	120 pF	1	0.2 J	AEC-Q200	28 V	25 V	16 V	MLCV Surface Mount	1608 Metric	0603	30 A	14 V	125 °C	-55 °C
Bourns Inc. CGA0603MLA-18101E	Automotive	19.8 V	100 pF	1	0.2 J	AEC-Q200	25.2 V	22.5 V	18 V	MLCV Surface Mount	1608 Metric	0603	30 A	14 V	125 °C	-55 °C
