MAN46 Series
Manufacturer: ON Semiconductor
Beta
⌘K

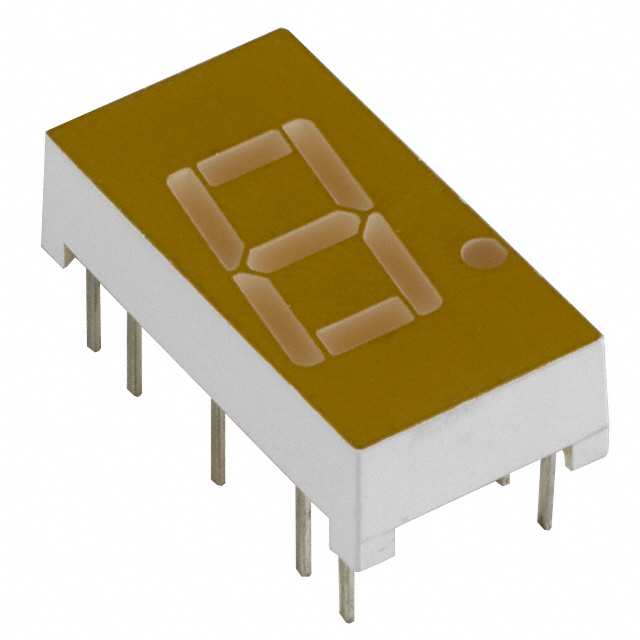

DISPLAY 7-SEG 0.4" SGL ORG 14DIP
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Test | Common Pin | Number of Characters [custom] | Millicandela Rating | Display Type | Digit/Alpha Size | Digit/Alpha Size [custom] | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Package / Case | Package / Case | Package / Case | Package / Case | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 0.738 " | 0.2 in | 0.2 " | 0.386 in | 9.8 mm | 18.75 mm | 20 mA | Common Cathode | 1 | 1.8 mcd | 7-Segment | 10.16 mm | 0.4 in | 630 nm | 2.2 V | 600 mW | |||||
ON Semiconductor | 0.738 " | 0.2 in | 0.2 " | 0.386 in | 9.8 mm | 18.75 mm | 20 mA | Common Anode | 1.8 mcd | 7-Segment | 10.16 mm | 0.4 in | 630 nm | 2.2 V | 450 mW | 0.3 in | 14-DIP | 7.62 mm | 9 PC Pad | +/-1 (overflow) |
