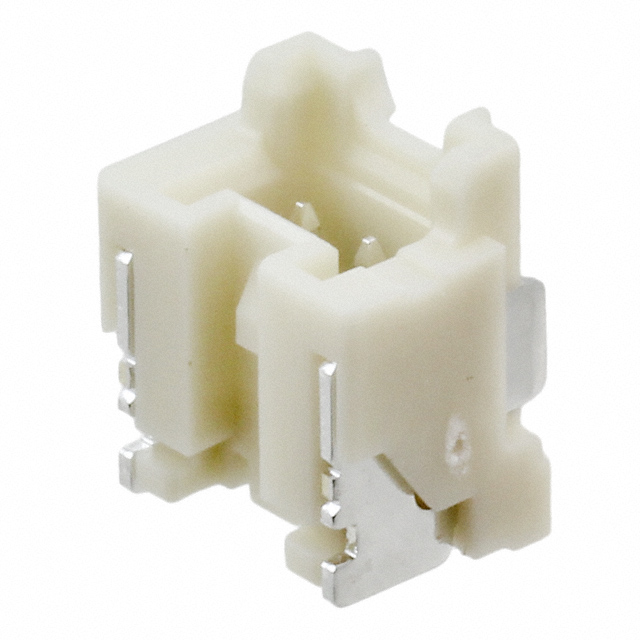

SM02B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 2POS 2MM
| Part | Contact Finish - Post | Termination | Mounting Type | Contact Shape | Connector Type | Style | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Insulation Material | Shrouding | Material Flammability Rating | Number of Positions Loaded | Contact Type | Features | Number of Positions | Contact Material | Current Rating (Amps) | Voltage Rating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | Solder | Right Angle Surface Mount | Square | Header | Board to Cable/Wire | Locking Ramp | 0.079 " | 2 mm | 5.69 mm | 0.224 in | 85 °C | -25 °C | Natural | Nylon Polyamide (PA) | Shrouded - 4 Wall | UL94 V-0 | All | Male Pin | Pick and Place Solder Retention | 2 | Copper Alloy | 3 A | 250 V | 1 |
