AMI-M11K Series

Catalog

LINE FILTER 250VAC 10A CHASSIS

Part	Applications	Filter Type	Inductance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Current	Configuration	Voltage - Rated AC
Altran Magnetics, LLC AMI-M11K-7M-10-B-2	General Purpose	Single Phase	495 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	10 A	Single Stage	250 V
Altran Magnetics, LLC AMI-M11K-7-3-B-2	General Purpose	Single Phase	1.76 mH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	3 A	Single Stage	250 V
Altran Magnetics, LLC AMI-M11K-7M-5-B-1	General Purpose	Single Phase	516 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	5 A	Single Stage	250 V
Altran Magnetics, LLC AMI-M11K-7-5-B-1	General Purpose	Single Phase	516 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	5 A	Single Stage	250 V

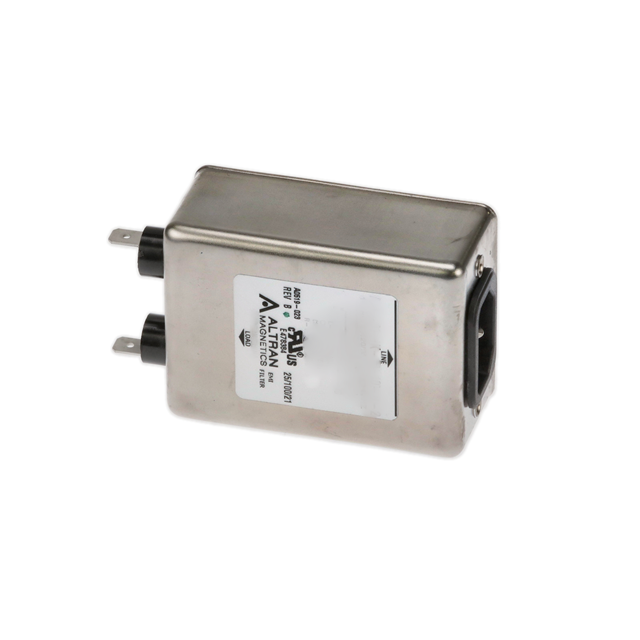

Altran Magnetics, LLC AMI-M11K-7-3-B-1	General Purpose	Single Phase	1.76 mH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	3 A	Single Stage	250 V
Altran Magnetics, LLC AMI-M11K-7-5-B-2	General Purpose	Single Phase	516 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	5 A	Single Stage	250 V

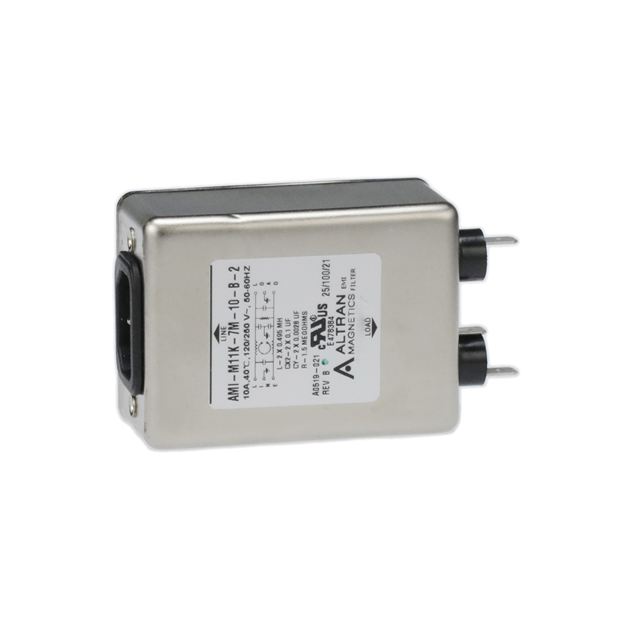

Altran Magnetics, LLC AMI-M11K-7M-5-B-2	General Purpose	Single Phase	516 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	5 A	Single Stage	250 V
Altran Magnetics, LLC AMI-M11K-7M-10-B-1	General Purpose	Single Phase	495 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	10 A	Single Stage	250 V
Altran Magnetics, LLC AMI-M11K-7-20-B	General Purpose	Single Phase	440 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C20 Quick Connect	20 A	Single Stage	250 V

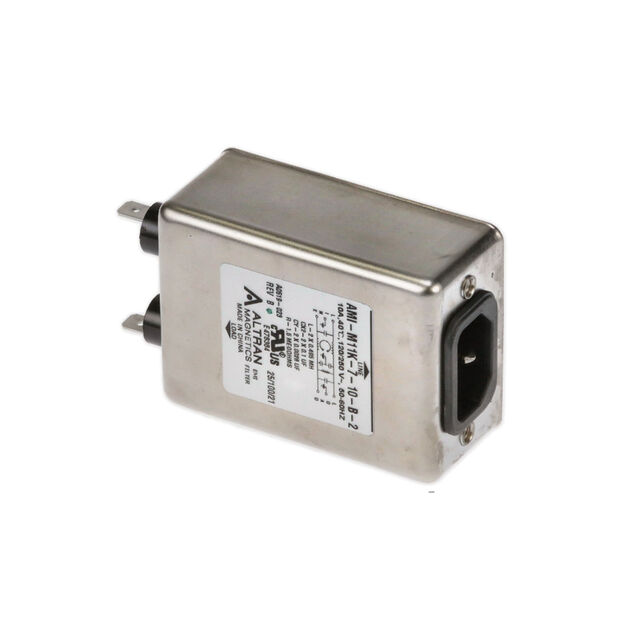

Altran Magnetics, LLC AMI-M11K-7-10-B-2	General Purpose	Single Phase	495 µH	Chassis Mount	40 °C	-10 °C	60 Hz	50 Hz	IEC 320-C14 Quick Connect	10 A	Single Stage	250 V
