2314845 Series

Catalog

14P,2MM,BB,REC,DRVT,SMD,AU.38,TB

Part	Features	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Material Flammability Rating	Fastening Type	Mounting Type	Insulation Color	Termination	Contact Finish - Post	Voltage Rating	Contact Material	Number of Positions	Insulation Height	Insulation Height	Contact Type

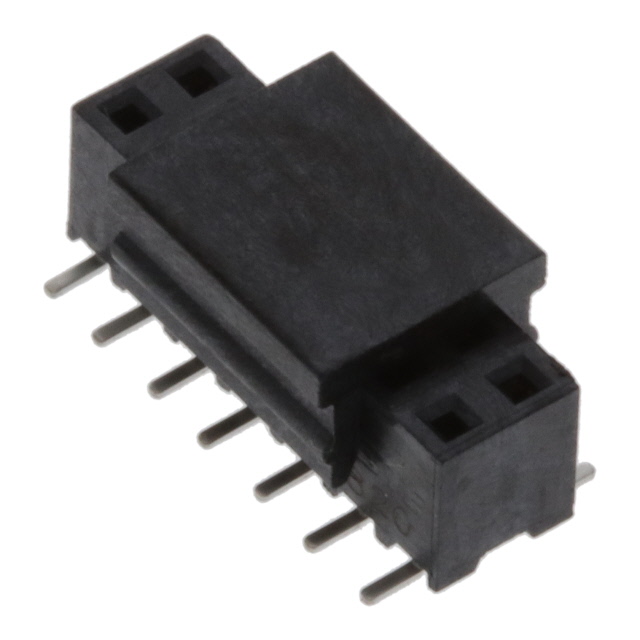

TE Connectivity Raychem Cable Protection 1-2314845-4	Pick and Place	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	0.079 in	2 mm	Square	3 µm	118.1 µin	2 A	15 µin	0.38 µm	All	Gold	2	0.079 in	2 mm	Receptacle Bottom or Top Entry	UL94 V-0	Push-Pull	Surface Mount	Black	Solder	Tin	125 VDC	Phosphor Bronze	14	0.177 in	4.5 mm	Female Socket
