CCLB-1-3057 Series

Catalog

PMI DIA .319" (8.1MM) BLUE 48V

Part	Voltage	Type	Panel Cutout Shape	Wavelength - Peak	Viewing Angle	Termination Style	Ratings	Ingress Protection	Lamp Color	Lens Color	Millicandela Rating	Current	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions
Visual Communications Company - VCC CCLB-1-3057-9913-I	3.3 V 48 V	LED	Round	468 nm	20 °	Wire Leads - 6.000" (152.40mm)	DC	IP67	Blue	Blue	640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm

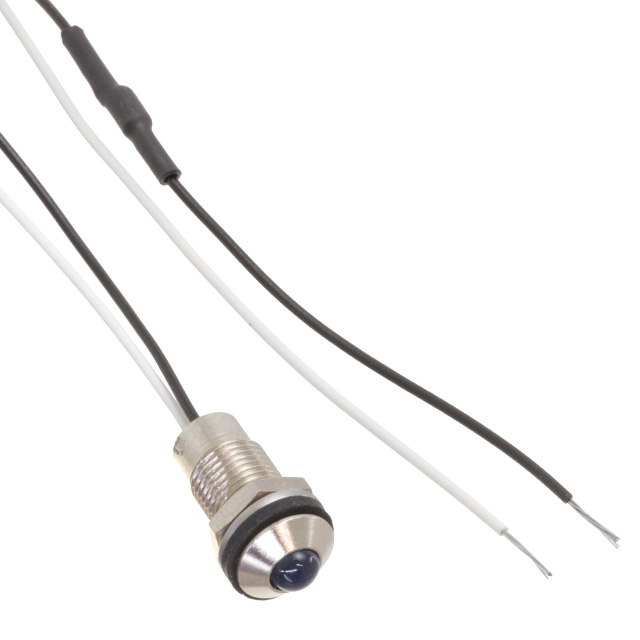

Visual Communications Company - VCC CCLB-1-3057-9920-I	120 V	LED	Round	468 nm	20 °		AC	IP67	Blue		640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CCLB-1-3057-9909-I	12 V	LED	Round	468 nm	20 °		DC	IP67	Blue		640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CCLB-1-3057-9922-I	3.3 V 5 V	LED	Round	468 nm	20 °	Wire Leads - 6.000" (152.40mm)	DC	IP67	Blue	Blue	640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm

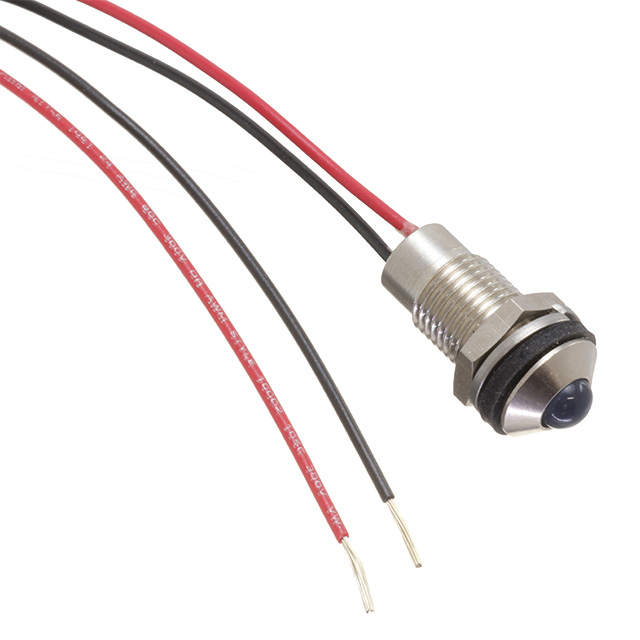

Visual Communications Company - VCC CCLB-1-3057-9933-I	28 V	LED	Round	468 nm	20 °		DC	IP67	Blue		640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CCLB-1-3057-0000-I	3.3 V	LED	Round	468 nm	20 °	Wire Leads - 6.000" (152.40mm)		IP67	Blue	Blue	640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CCLB-1-3057-9911-I	3.3 V 24 V	LED	Round	468 nm	20 °	Wire Leads - 6.000" (152.40mm)	DC	IP67	Blue	Blue	640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CCLB-1-3057-9923-I	3.3 V 28 V	LED	Round	468 nm	20 °	Wire Leads - 6.000" (152.40mm)	DC	IP67	Blue	Blue	640 mcd	20 mA	Round with Domed Top	0.32 "	8.1 mm
