VFHL1112 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

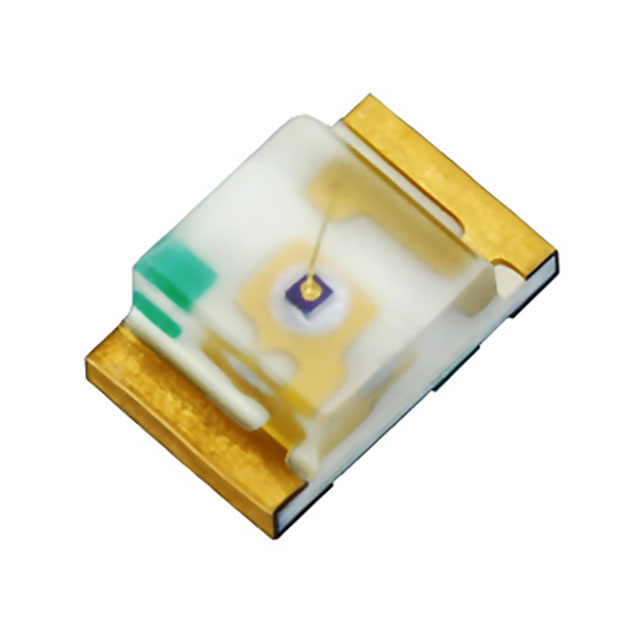

LED GREEN DIFFUSED 2125 SMD
| Part | Size / Dimension [x] | Size / Dimension [y] | Configuration | Current - Test | Height (Max) [Max] [z] | Millicandela Rating | Lens Color | Mounting Type | Supplier Device Package | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Color | Package / Case | Wavelength - Peak | Lens Style | Lens Size [x] | Lens Size [y] | Lens Transparency | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 2 mm | 1.25 mm | Standard | 20 mA | 0.9 mm | 16 mcd | White | Surface Mount | 2125 | 562 nm | 1.9 V | Green | 0805 | 565 nm | Rectangle with Flat Top | 1.2 mm | 1.25 mm | Diffused | 140 ° |
