282828 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 5POS VERT 10.16MM
| Part | Color | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Contact Tail Length | Contact Tail Length | Header Orientation | Positions Per Level | Contact Mating Finish | Insulation Height | Insulation Height | Mounting Type | Termination Style | Type | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Green | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | 1 | 3.5 mm | 0.138 in | Vertical | 5 | Tin | 8.36 mm | 0.329 in | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 10.16 mm | 0.4 in | |

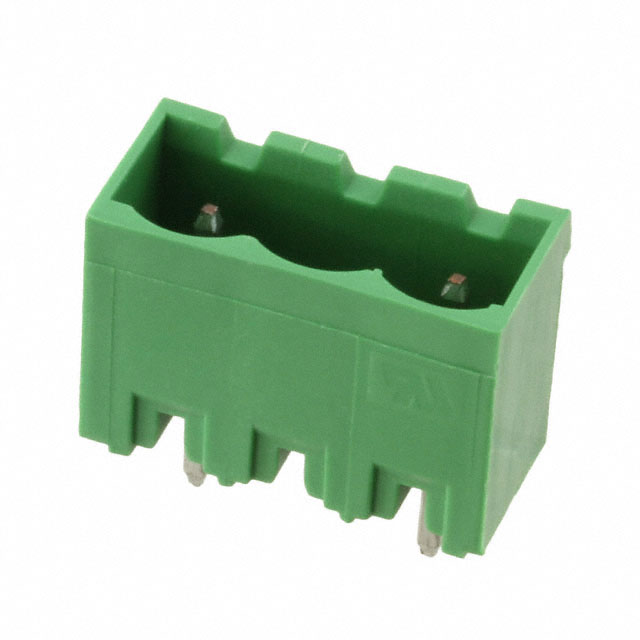

 TE Connectivity Raychem Cable Protection | Green | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | 1 | 3.5 mm | 0.138 in | Vertical | 2 | Tin | 8.36 mm | 0.329 in | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 10.16 mm | 0.4 in | 2 |
TE Connectivity Raychem Cable Protection | Green | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | 1 | 3.5 mm | 0.138 in | Vertical | 8 | Tin | 8.36 mm | 0.329 in | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 10.16 mm | 0.4 in | 8 |
TE Connectivity Raychem Cable Protection | Green | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | 1 | 3.5 mm | 0.138 in | Vertical | 11 | Tin | 8.36 mm | 0.329 in | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 10.16 mm | 0.4 in | 11 |
