PR24-5V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

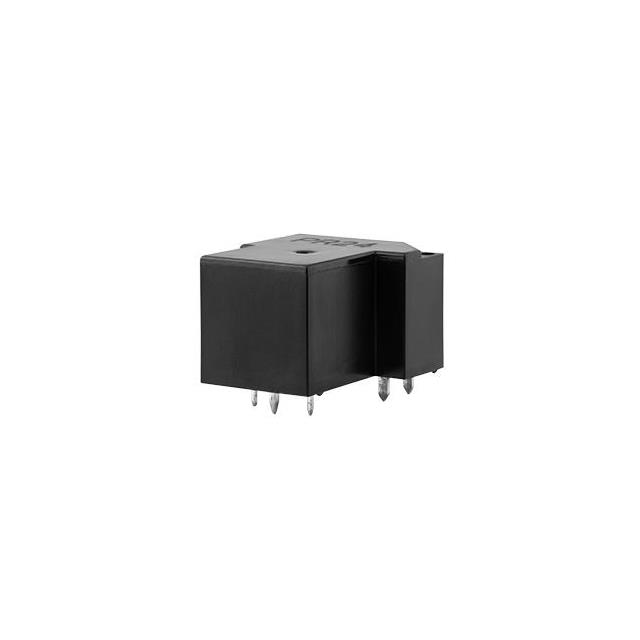

GENERAL PURPOSE RELAYS 27.4 X 31.8 X 20 MM, 5 V, 40 A, SPST (1 FORM A), POWER RELAY
| Part | Contact Material | Release Time | Switching Voltage [Max] | Coil Current | Contact Form | Termination Style | Contact Rating (Current) | Operate Time | Mounting Type | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Must Release Voltage | Coil Voltage | Coil Type | Load - Max Switching | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Silver Alloy | 10 ms | 28 VDC 250 VAC | 179.9 mA | SPST-NO (1 Form A) | PC Pin | 40 A | 15 ms | Through Hole | General Purpose | 85 °C | -40 C | 3.5 VDC | 0.5 VDC | 5 VDC | Non Latching | 1120 W 10000 VA | |
Same Sky (Formerly CUI Devices) | Silver Alloy | 10 ms | 28 VDC 250 VAC | 179.9 mA | SPST-NO (1 Form A) | PC Pin | 40 A | 15 ms | Through Hole | General Purpose | 85 °C | -40 C | 3.5 VDC | 0.5 VDC | 5 VDC | Non Latching | 1120 W 10000 VA | 27.8 Ohms |
