746861 Series

Catalog

CONN D-SUB RCPT 25POS IDC

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Current Rating (Amps)	Termination	Flange Feature	Flange Feature	Connector Type	Contact Finish	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Material Flammability Rating	Number of Rows [custom]	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]

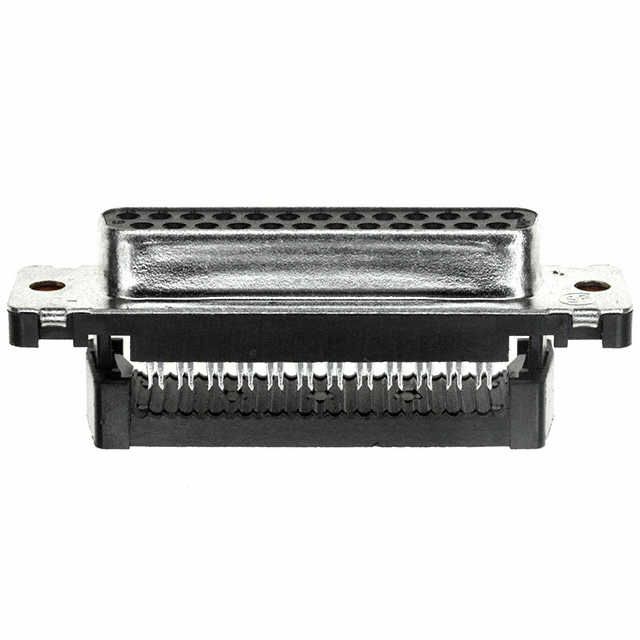

TE Connectivity AMP Connectors 746861-2	Black	-55 C	105 ░C	Phosphor Bronze	Thermoplastic	25	B DB	3	1.25 A	IDC Ribbon Cable	Housing/Shell	4-40	Receptacle Female Sockets	Gold	D-Sub	Feed Through	30 Áin	0.76 Ám	Signal	UL94 V-0	2	Free Hanging (In-Line)
TE Connectivity AMP Connectors 746861-4	Black	-55 C	105 ░C	Phosphor Bronze	Thermoplastic	9			1.25 A	IDC Ribbon Cable	Housing/Shell	4-40	Receptacle Female Sockets	Gold	D-Sub	Feed Through	30 Áin	0.76 Ám	Signal	UL94 V-0	2	Free Hanging (In-Line)	1	DE E
