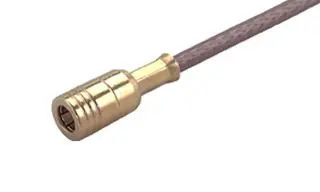

11_SMB-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

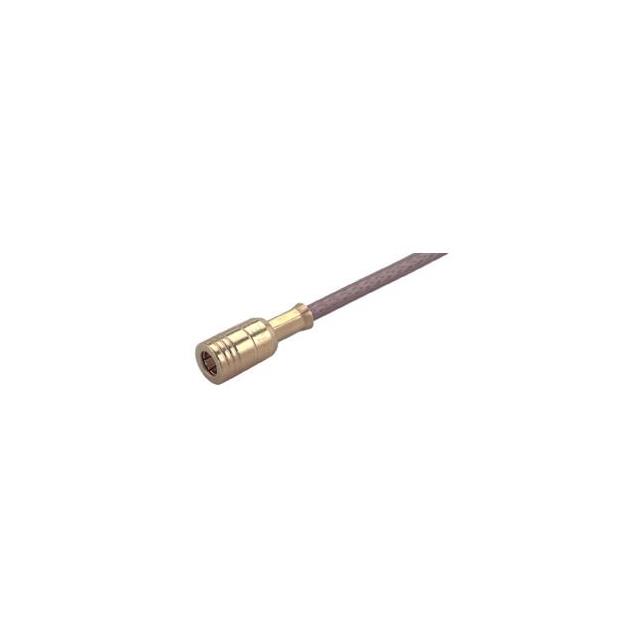

11_SMB-50-2-40/133_NE
| Part | Body Finish | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Number of Ports | Fastening Type | Frequency - Max [Max] | Impedance | Cable Group | Cable Group | Center Contact Material | Connector Style | Housing Color | Shield Termination | Mounting Type | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | White Bronze | 500 | Perfluoroalkoxy (PFA) Polysulfone (PSU) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 1 | Snap-On | 4 GHz | 50 Ohms | RG-174 | 316 | Beryllium Copper | SMB | Silver | Crimp | Free Hanging (In-Line) | Plug Male Pin | Crimp |
 Huber+Suhner, Inc. | Gold | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 1 | Snap-On | 4 GHz | 50 Ohms | RG-178 | 196 | Beryllium Copper | SMB | Gold | Crimp | Free Hanging (In-Line) | Plug Male Pin | Crimp |
Huber+Suhner, Inc. | Gold | 500 | Perfluoroalkoxy (PFA) Polysulfone (PSU) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 1 | Snap-On | 4 GHz | 50 Ohms | RG-174 | 316 | Beryllium Copper | SMB | Gold | Crimp | Free Hanging (In-Line) | Plug Male Pin | Crimp |
 Huber+Suhner, Inc. | Gold | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 1 | Snap-On | 4 GHz | 50 Ohms | RD-316 | Beryllium Copper | SMB | Gold | Crimp | Free Hanging (In-Line) | Plug Male Pin | Crimp | |
Huber+Suhner, Inc. | Gold | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 1 | Snap-On | 4 GHz | 50 Ohms | RD-316 | Beryllium Copper | SMB | Gold | Crimp | Free Hanging (In-Line) | Plug Male Pin | Crimp |
