OTX Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K
THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, HIGH PERFORMANCE, MINIATURE FORM FACTOR, SBSN SOLDER
| Part | Operating Temperature | Qmax @ Th | Features | Number of Stages | Voltage - Max [Max] | Resistance | Current - Max [Max] | Height [z] | Delta Tmax @ Th | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

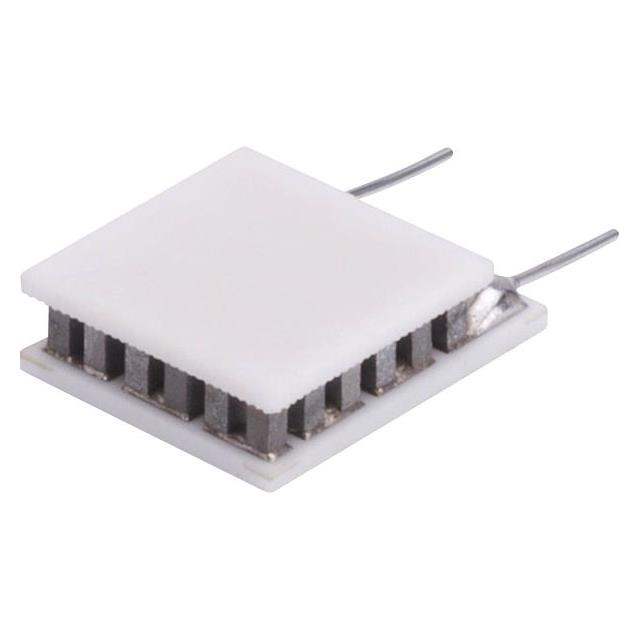

 Laird Thermal Systems, Inc. | 120 °C | 1 W | Lapped Lead Wires | 1 | 2.1 V | 2.43 Ohms | 800 mA | 2.4 mm | 72.9 °C | 6.7 mm | 4.9 mm | |

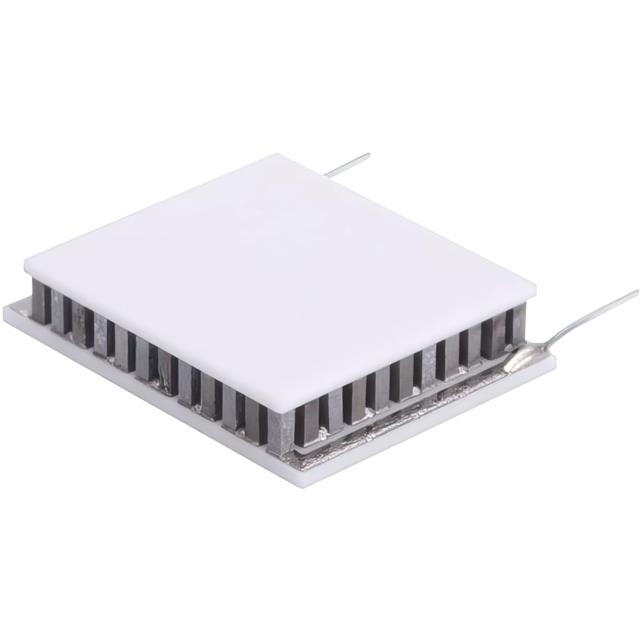

 Laird Thermal Systems, Inc. | 120 °C | 5.5 W | Lead Wires | 1 | 7.7 V | 5.93 Ohms | 1.2 A | 3 mm | 72.9 °C | 14.2 mm | 11.2 mm | Rectangular |
