MAXQ610 Series

16-Bit Microcontroller with Infrared Module

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

16-Bit Microcontroller with Infrared Module

Part	Supplier Device Package	Program Memory Size	RAM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Core Processor	Program Memory Type	Connectivity	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of I/O	Oscillator Type	Core Size	Speed	Mounting Type	Board Type	Contents	Utilized IC / Part	Type
Analog Devices Inc./Maxim Integrated MAXQ610J-0000+	44-TQFN (7x7)	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C	44-WFQFN Exposed Pad	32	Internal	16-Bit	12 MHz	Surface Mount

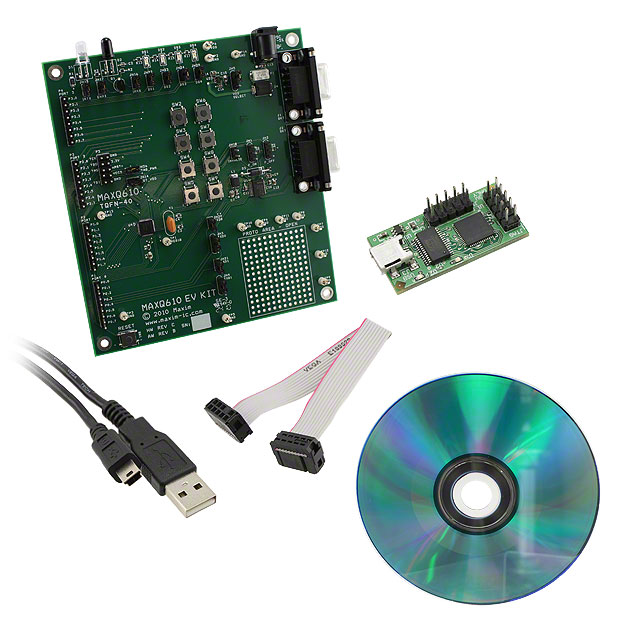

Analog Devices Inc./Maxim Integrated MAXQ610-KIT#							MAXQ20S										Fixed	Evaluation Platform	Board Cable	MAXQ610	MCU 16-Bit
Analog Devices Inc./Maxim Integrated MAXQ610A-9410+	32-TQFN 5x5	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C		24	Internal	16-Bit	12 MHz	Surface Mount
Analog Devices Inc./Maxim Integrated MAXQ610B-0000+	40-TQFN (6x6)	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C	40-WFQFN Exposed Pad	32	Internal	16-Bit	12 MHz	Surface Mount
Analog Devices Inc./Maxim Integrated MAXQ610K-0000+	44-TQFN (7x7)	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C	44-WFQFN Exposed Pad	32	Internal	16-Bit	12 MHz	Surface Mount

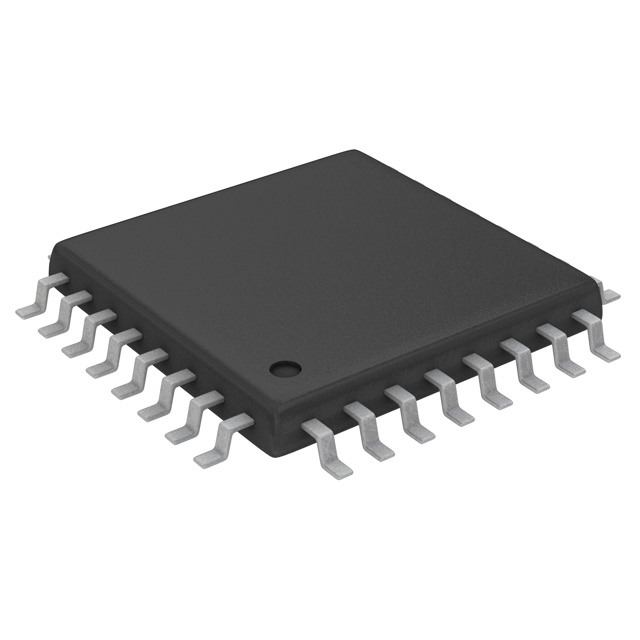

Analog Devices Inc./Maxim Integrated MAXQ610E-0000+	32-LQFP (7x7)	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C	32-LQFP	20	Internal	16-Bit	12 MHz	Surface Mount
Analog Devices Inc./Maxim Integrated MAXQ610A-0000+	32-TQFN 5x5	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C		24	Internal	16-Bit	12 MHz	Surface Mount
Analog Devices Inc./Maxim Integrated MAXQ610J-0000+T	44-TQFN (7x7)	64 KB	2 K	3.6 V	1.7 V	Brown-out Detect/Reset Infrared POR Power-Fail WDT	MAXQ20S	FLASH	SPI UART/USART	0 °C	70 °C	44-WFQFN Exposed Pad	32	Internal	16-Bit	12 MHz	Surface Mount

Description

The MAXQ610 is a low-power, 16-bit MAXQ® microcontroller designed for low-power applications including universal remote controls, consumer electronics, and white goods. The MAXQ610 combines a powerful 16-bit RISC microcontroller and integrated peripherals including two USARTs and an SPI™ master/slave communications port, along with an IR module with carrier frequency generation and flexible port I/O capable of multiplexed keypad control.The MAXQ610 includes 64KB of flash memory and 2KB of data SRAM. Intellectual property (IP) protection is provided by a secure MMU that supports multiple application privilege levels and protects code against copying and reverse engineering. Privilege levels enable vendors to provide libraries and applications to execute on the MAXQ610, while limiting access to only data and code allowed by their privilege level.For the ultimate in low-power battery-operated performance, the MAXQ610 includes an ultra-low-power stop mode (0.2µA, typ). In this mode, the minimum amount of circuitry is powered. Wake-up sources include external interrupts, the power-fail interrupt, and a timer interrupt. The microcontroller runs from a wide 1.70V to 3.6V operating voltage.Note: Designers must have the following documents to fully use all the features of this device. This data sheet contains pin descriptions, feature overviews, and electrical specifications. Errata sheets contain deviations from published specifications. The user's guides offer detailed information about device features and operation.MAXQ610 IC data sheetMAXQ610 revision-specific errata sheet (Click here for availability)MAXQ610 User's GuideApplicationsBattery-Powered Portable EquipmentConsumer ElectronicsHome AppliancesRemote ControlsWhite Goods
