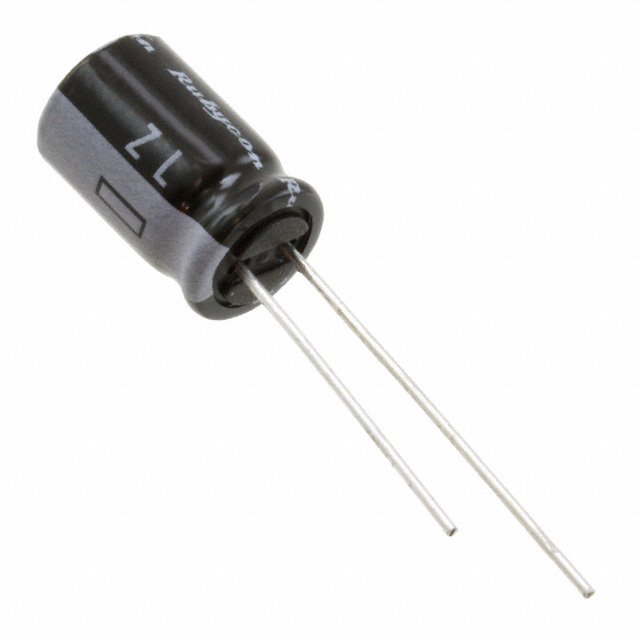

ZL Series
Manufacturer: Rubycon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS
| Part | Impedance | Voltage - Rated | Mounting Type | Lead Spacing | Lead Spacing | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Ripple Current @ Low Frequency | Polarization | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Applications | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rubycon | 140 mOhms | 50 VDC | Through Hole | 2.5 mm | 0.098 in | 0.248 " | 6.3 mm | 56 µF | 192.5 mA | Polar | 0.492 in | 12.5 mm | 20 % | -40 C | 105 ░C | 2000 Hrs | General Purpose | Can Radial |
