37304 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 1 ROW, 4 CONTACTS, CABLE MOUNT

Part	Cable Termination	Mounting Type	Wire Type	Number of Positions	Number of Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Features	Pitch [x]	Pitch [x]
3M Electronic Specialty 37304-3163-000 FL 100	IDC	Free Hanging (In-Line)	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	24 AWG	26 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-2206-000 FL 100	IDC	Free Hanging (In-Line)	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	19.5 AWG	22 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-3163-0P0 FL 500	IDC	Panel Mount	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	24 AWG	26 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-3101-000 FL 500	IDC	Free Hanging (In-Line)	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	24 AWG	26 AWG	Closed End	0.079 in	2 mm

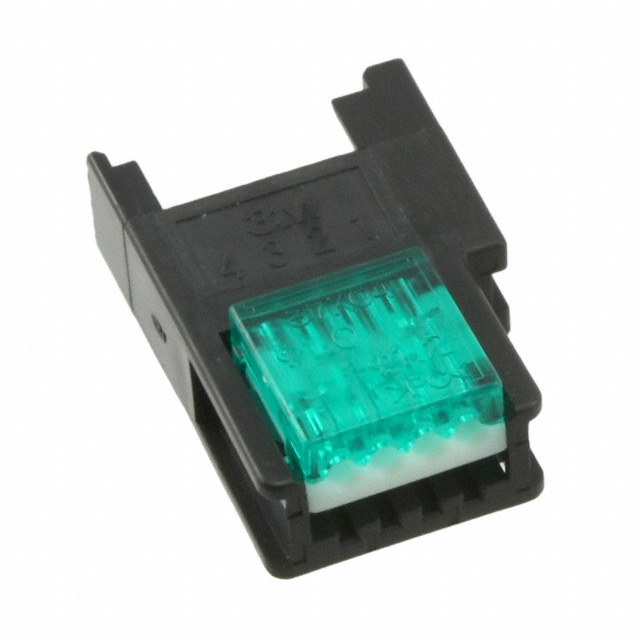

3M Electronic Specialty 37304-2124-000 FL 100	IDC	Free Hanging (In-Line)	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	19.5 AWG	22 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-3101-0P0 FL 100	IDC	Panel Mount	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	24 AWG	26 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-3101-0P0 FL 500	IDC	Panel Mount	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	24 AWG	26 AWG	Closed End	0.079 in	2 mm

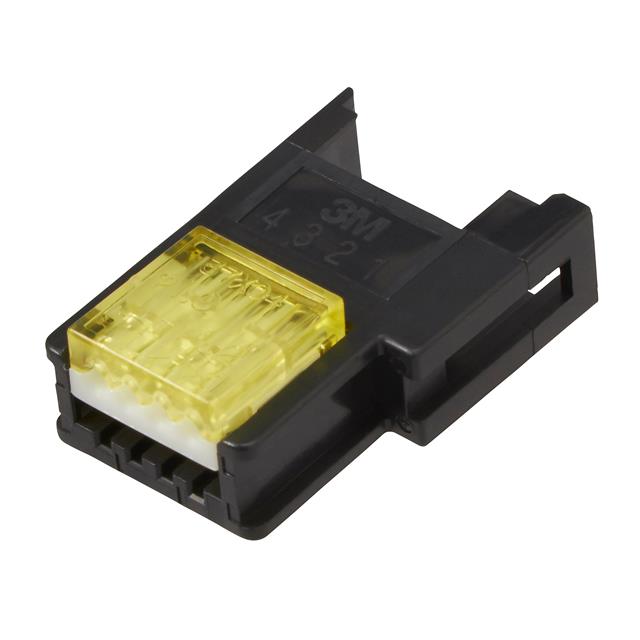

3M Electronic Specialty 37304-3122-000 FL 100	IDC	Free Hanging (In-Line)	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	24 AWG	26 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-A124-0PE MB	IDC	Panel Mount	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	19.5 AWG	24 AWG	Closed End	0.079 in	2 mm
3M Electronic Specialty 37304-A206-0PE MB	IDC	Panel Mount	Discrete	4	1	Black	0.203 çm	8 µin	Gold	Receptacle	Female Socket	19.5 AWG	24 AWG	Closed End	0.079 in	2 mm
