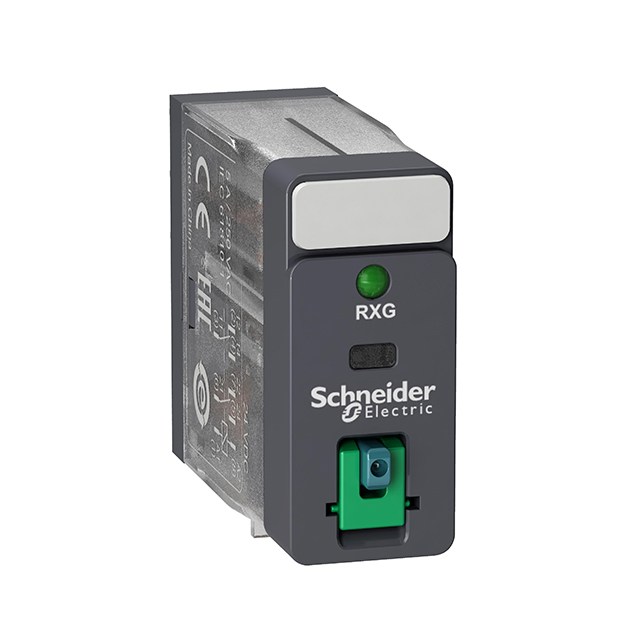

RXG22 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
POWER RELAY, DPDT, 220 VAC, 5 A, ZELIO RXG SERIES, SOCKET
| Part | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Release Time | Coil Type | Features | Load - Max Switching | Operate Time | Switching Voltage [Max] | Termination Style | Coil Current | Relay Type | Contact Material | Contact Form | Approval Agency | Coil Voltage | Must Operate Voltage | Contact Rating (Current) | Must Release Voltage | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 21 kOhms | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | 10.5 mA | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 220 VAC/DC | 176 VAC | 5 A | 66 VAC | Class F |
 SCHNEIDER ELECTRIC | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 12 VDC | 5 A | 1.2 VDC | ||||
 SCHNEIDER ELECTRIC | 260 Ohms | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | 92.3 mA | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 24 VAC | 19.2 VAC | 5 A | 7.2 VAC | Class F |
 SCHNEIDER ELECTRIC | 4.4 kOhms | 70 °C | -40 C | Chassis Mount | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | 10.9 mA | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 48 VDC | 5 A | 4.8 VDC | Class F | |
 SCHNEIDER ELECTRIC | 22.8 kOhms | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | 4.8 mA | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 110 VDC | 5 A | 11 VDC | Class F | |
SCHNEIDER ELECTRIC | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 24 VDC | 5 A | 2.4 VDC | ||||
SCHNEIDER ELECTRIC | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 48 VAC | 38.4 VAC | 5 A | 14.4 VAC | |||
SCHNEIDER ELECTRIC | 6.3 kOhms | 70 °C | -40 C | Socketable | 20 ms | Non Latching | Lighted Indicator Test Button | 150 W 1250 VA | 20 ms | 30 VDC 250 VAC | Plug In | 19 mA | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 120 VAC | 96 VAC | 5 A | 36 VAC | Class F |

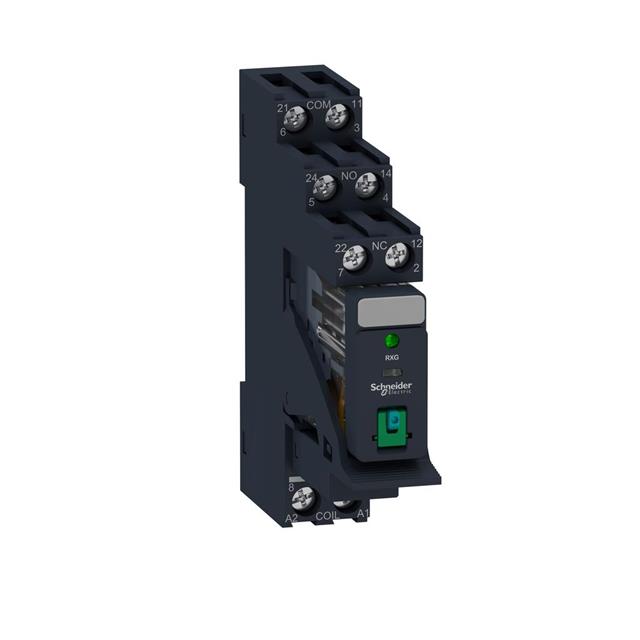

 SCHNEIDER ELECTRIC | 70 °C | -40 C | DIN Rail | 20 ms | Non Latching | Lighted Indicator Test Button | 1250 VA | 20 ms | 250 VAC | Screw Terminal | General Purpose | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 24 VDC | 19.2 VDC | 5 A | 2.4 VDC |
