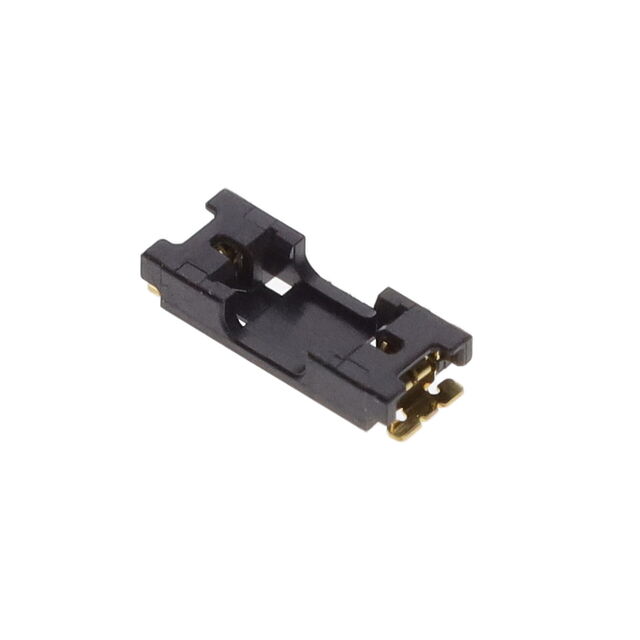

248040 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
WIRE TO BOARD
| Part | Contact Material | Contact Shape | Insulation Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish - Mating | Insulation Height | Insulation Height | Connector Type | Insulation Color | Style | Number of Rows | Contact Type | Contact Finish - Post | Features | Current Rating (Amps) | Number of Positions Loaded | Fastening Type | Mounting Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Copper Alloy | Rectangular | Plastic | 2 | -55 C | 80 °C | Solder | Gold | 0.055 in | 1.4 mm | Receptacle | Black | Board to Cable/Wire | 1 | Female Socket | Gold | Solder Retention | 1 A | All | Latch Holder | Right Angle Surface Mount | 30 VDC | 1 mm | 0.039 in | 3.94 µin | 0.1 µm |
 KYOCERA AVX | Copper Alloy | Rectangular | Plastic | 2 | -55 C | 80 °C | Solder | Gold | 0.055 in | 1.4 mm | Receptacle | Black | Board to Cable/Wire | 1 | Female Socket | Gold | Solder Retention | 1 A | All | Latch Holder | Right Angle Surface Mount | 30 VDC | 1 mm | 0.039 in | 3.94 µin | 0.1 µm |
