TA3FS Series

Catalog

SEALED MINI-XLR, CABLE END, 3-PIN FEMALE, 0.140" [3.6MM] - 0.160" [4.1MM] CABLE SIZE

Part	Contact Material	Voltage Rating	Contact Finish - Mating	Shell Size - Insert	Orientation	Color	Mounting Type	Insert Material	Primary Material	Fastening Type	Current Rating (Amps)	Backshell Material, Plating	Ingress Protection	Applications	Connector Type	Features	Shell Finish	Shell Material	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Termination	Cable Opening	Cable Opening	Material Flammability Rating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]

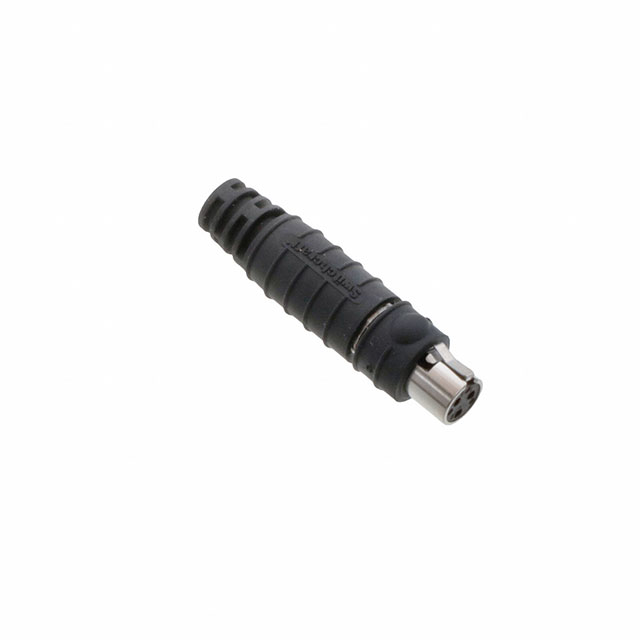

SWITCHCRAFT/CONXALL TA3FS15	Copper Alloy	125 VAC	Silver	Mini XLR	Keyed	Black Silver	Free Hanging (In-Line)	Thermoplastic	Metal	Latch Lock	5 A	Thermoplastic Thermoplastic Rubber	IP65 IP66	Audio Medical	Plug Female Sockets	Backshell Cable Clamp Strain Relief	Nickel	Copper Alloy	4.06 mm	0.16 in	0.14 in	3.56 mm

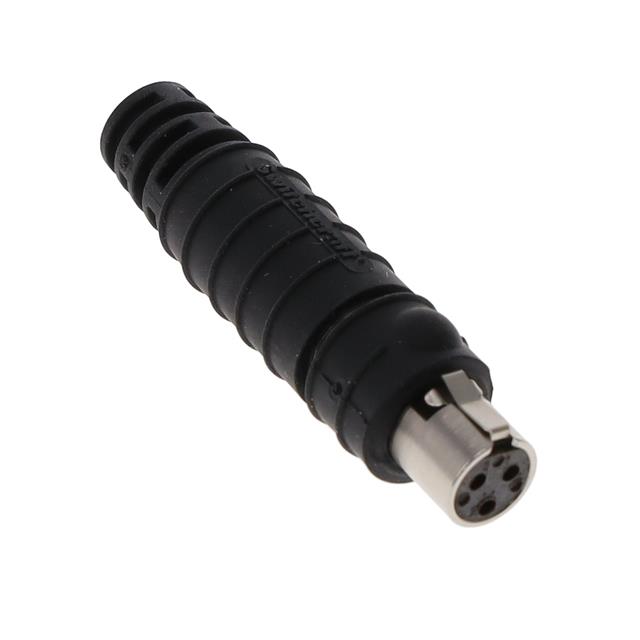

SWITCHCRAFT/CONXALL TA3FS11	Copper Alloy	125 VAC	Silver	Mini XLR	Keyed	Black Silver	Free Hanging (In-Line)	Thermoplastic	Metal	Latch Lock	5 A	Thermoplastic Thermoplastic Rubber	IP65 IP66	Audio Medical	Plug Female Sockets	Backshell Cable Clamp Strain Relief	Nickel	Copper Alloy	3.05 mm	0.12 in	0.1 "	2.54 mm

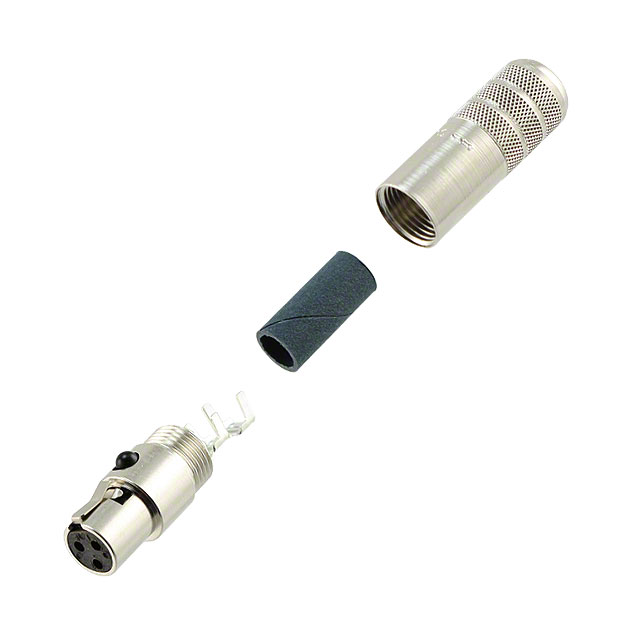

SWITCHCRAFT/CONXALL TA3FSH	Copper Alloy	125 VAC	Silver	Mini XLR	Keyed	Silver	Free Hanging (In-Line)	Thermoplastic	Metal	Latch Lock	5 A	Copper Alloy Nickel		Audio Medical	Plug Female Sockets	Backshell Cable Clamp Ground	Nickel	Copper Alloy					Solder	7.37 mm	0.29 in	UL94 V-0	Shielded	-55 C	85 °C
