TAT-1 Series

Catalog

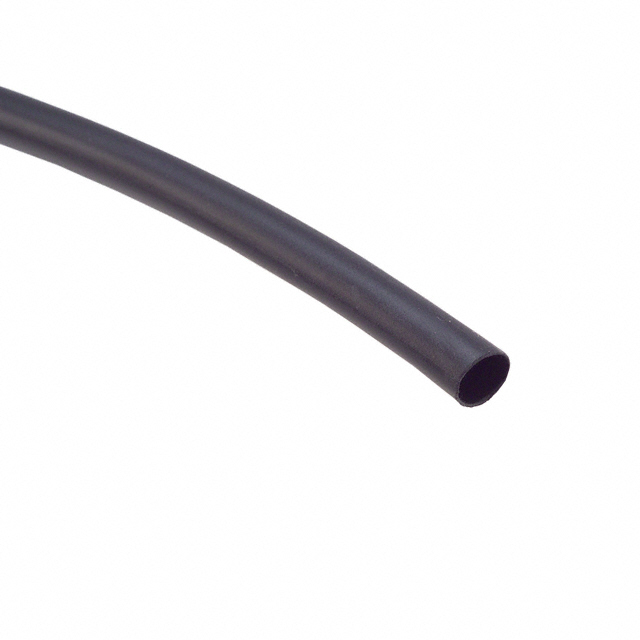

HEATSHRINK DUAL 25.4X1220MM BLK

Part	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Shelf Life	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type
TE Connectivity AMP Connectors TAT-125-1-0-STK	4 ft	1.22 m	1.07 mm	0.042 in	Black	12.7 mm	0.5 "	25.4 mm	1 in	Polyolefin (PO)	95 °C	-55 C	110 °C	Adhesive Lined Flame Retardant	95 °F	35 °C	65 °F	18 °C	60 Months	1	2	Tubing Flexible
TE Connectivity AMP Connectors TAT-125-1/8-0-STK	4 ft	1.22 m	0.69 mm	0.027 in	Black	1.57 mm	0.062 in	3.18 mm	0.125 in	Polyolefin (PO)	95 °C	-55 C	110 °C	Adhesive Lined Flame Retardant	95 °F	35 °C	65 °F	18 °C	60 Months	1	2	Tubing Flexible
